A drill press is an indispensable tool for both hobbyists and professionals who want precise and repeatable holes in wood, metal or plastic. The machine provides stability, power and control that handheld drills can rarely match. Whether you are working on furniture building, finer woodworking projects or metalworking, the right drill press can make the job both faster and more accurate.

In this article, you will get a comprehensive overview of different types of drill presses and their key features, so that you can get an impression of which models and characteristics are available on the market.

The article presents a selection of drill presses from different manufacturers and in various price ranges. The purpose is to provide a versatile picture of the functions and specifications you can expect when looking for a machine for your workshop. The information about the products is based on publicly available descriptions from manufacturers and retailers and is summarised to provide a clear and informative overview without evaluating or testing the individual models.

1
Precision in steel

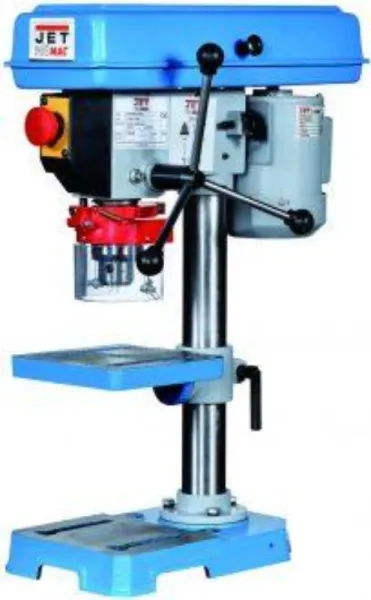

JET Drill Press 210 Z
A stable and user-friendly drill press from JET with five speeds, a 230V motor and solid construction, suitable for smaller drilling tasks in metal and wood.
Why it was chosen: The JET 210 Z was selected as an example of a compact and reliable drill press that combines easy operation with precision. It represents a typical choice for both hobby users and small workshops looking for a robust machine for everyday drilling tasks.

The JET Drill Press 210 Z is a compact and stable machine designed for precision drilling in various materials. It comes with a keyed chuck (0.5–13 mm) and a 75 mm machine vice, making it ready to use straight out of the box.

The machine is equipped with a safety device combined with chuck drive and an emergency stop located on the front for increased safety during operation. Speed change is via belt drive, allowing the drilling speed to be adjusted to the material.

The drill table has two parallel 12 mm slots, and the spindle can move 53 mm in stroke length. With a B16 spindle taper and a maximum drilling diameter of 10 mm, the machine is suitable for precision work on smaller pieces.

The motor runs on 230V and delivers 0.19 kW. The machine has five speeds from 600 to 2600 revolutions per minute, providing flexibility for various drilling tasks. The compact size and weight of 32 kg make it easy to place on a workbench.

The JET 210 Z is built with a focus on reliability and ease of use, making it suitable for both hobby workshops and light professional use.

  • Five speeds: Adjustable drilling speed from 600 to 2600 rpm via belt drive.
  • Safe operation: Equipped with emergency stop and safety device at the chuck.
  • Compact design: Fits well on workbenches in smaller workshops.
  • Stable construction: Weight of 32 kg provides good stability during drilling.
  • Ready to use: Includes keyed chuck (0.5–13 mm) and 75 mm machine vice.

Pros and cons

  • Stable and compact construction
  • Multiple speed settings via belt drive
  • Built-in emergency stop for increased safety
  • Supplied with relevant accessories
  • Limited drilling capacity of max. 10 mm
  • Manual speed adjustment requires belt change

Pros and cons

Pros

  • Stable and compact construction
  • Multiple speed settings via belt drive
  • Built-in emergency stop for increased safety
  • Supplied with relevant accessories

Cons

  • Limited drilling capacity of max. 10 mm
  • Manual speed adjustment requires belt change

Pros

  • Stable and compact construction
  • Multiple speed settings via belt drive
  • Built-in emergency stop for increased safety
  • Supplied with relevant accessories

Cons

  • Limited drilling capacity of max. 10 mm
  • Manual speed adjustment requires belt change
Pros: The machine has a stable and compact construction, offers multiple speed settings via belt drive, has a built-in emergency stop for increased safety, and comes with relevant accessories.
Cons: It has a limited drilling capacity of max. 10 mm, and the manual speed adjustment requires a belt change.
Pros: The machine has a stable and compact construction, offers multiple speed settings via belt drive, has a built-in emergency stop for increased safety, and comes with relevant accessories.
Cons: It has a limited drilling capacity of max. 10 mm, and the manual speed adjustment requires a belt change.

Specifications

  • Model: 210 Z
  • Manufacturer: JET
  • Motor voltage: 230 V
  • Motor power: 0.19 kW
  • Spindle taper: B16
  • Maximum drilling diameter: Ø10 mm
  • Throat depth: 105 mm
  • Spindle stroke: 53 mm
  • Speeds: 5 steps (600–2600 rpm)
  • Drill table: 2 parallel 12 mm slots
  • Slots (number/size): T12
  • Weight: 32 kg
  • Dimensions (L×W×H): 600 × 420 × 240 mm
  • Included accessories: Keyed chuck 0.5–13 mm, machine vice 75 mm
2
Precision and strength
Axminster Workshop Drill Press AW315PD 230V
A robust cast iron drill press with a 550 W induction motor and 12 speeds, providing precise drilling in various materials.
Why it was chosen: The AW315PD was selected as an example of a solid and user-friendly drill press for hobby and home workshops. It combines stable construction, adjustable drilling depth and flexible speed control, making it suitable for many types of drilling tasks.

The Axminster Workshop AW315PD is a drill press constructed from cast iron and machined steel, providing high stability and reducing vibrations during use. It is equipped with a quiet 550 W induction motor that drives the spindle via a belt drive with 12 different speeds from 210 to 2,580 revolutions per minute.

The machine has a keyless chuck with a capacity from 1 to 16 mm, making it easy to change drill bits without tools. The drilling depth can be precisely adjusted, and the feed handle is fitted with soft grips for better control.

The table height is adjusted via a rack and pinion system, and the entire table can be swung away so that the machine base can be used as support for larger workpieces. An adjustable safety guard and a front-mounted NVR switch contribute to safe operation.

The AW315PD is suitable for precision drilling in wood, plastic and metals and is a practical choice for users who want a stable and reliable machine for workshop use.

  • Cast iron construction: Provides stability and reduces vibrations during drilling.
  • 550 W induction motor: Delivers quiet and reliable operation.
  • 12 speeds: From 210 to 2,580 rpm for different materials and drilling tasks.
  • Keyless chuck: Quick and easy bit changes from 1 to 16 mm.
  • Adjustable table: Height and angle can be adjusted via rack and pinion system.

Pros and cons

  • Robust and vibration-damping cast iron construction
  • Quiet induction motor with 12 speeds
  • Easy adjustment of table height and drilling depth
  • Keyless chuck for quick bit changes
  • Suitable for precision work in multiple materials
  • Not compatible with mortising attachments
  • Relatively heavy 37 kg construction may require a fixed location

Pros and cons

Pros

  • Robust and vibration-damping cast iron construction
  • Quiet induction motor with 12 speeds
  • Easy adjustment of table height and drilling depth
  • Keyless chuck for quick bit changes
  • Suitable for precision work in multiple materials

Cons

  • Not compatible with mortising attachments
  • Relatively heavy 37 kg construction may require a fixed location

Pros

  • Robust and vibration-damping cast iron construction
  • Quiet induction motor with 12 speeds
  • Easy adjustment of table height and drilling depth
  • Keyless chuck for quick bit changes
  • Suitable for precision work in multiple materials

Cons

  • Not compatible with mortising attachments
  • Relatively heavy 37 kg construction may require a fixed location
Pros: The machine has a robust and vibration-damping cast iron construction, a quiet induction motor with 12 speeds, easy adjustment of table height and drilling depth, a keyless chuck for quick bit changes, and is suitable for precision work in multiple materials.
Cons: It is not compatible with mortising attachments, and the relatively heavy 37 kg construction may require a fixed location.
Pros: The machine has a robust and vibration-damping cast iron construction, a quiet induction motor with 12 speeds, easy adjustment of table height and drilling depth, a keyless chuck for quick bit changes, and is suitable for precision work in multiple materials.
Cons: It is not compatible with mortising attachments, and the relatively heavy 37 kg construction may require a fixed location.

Specifications

  • Model: AW315PD
  • Item number (SKU): AX107691
  • Voltage: 230 V
  • Power: 550 W
  • Speeds: 12 steps (210–2,580 rpm)
  • Chuck capacity: 1–16 mm
  • Chuck type: Keyless
  • Chuck travel: 60 mm
  • Column diameter: 60 mm
  • Max. distance chuck–spindle: 430 mm
  • Max. distance chuck–table: 315 mm
  • Max. drilling in mild steel: 16 mm
  • Table size: 198 × 198 mm
  • Table tilt: 45° – 0° – 45°
  • Throat depth: 127 mm
  • Dimensions (L × W × H): 520 × 260 × 840 mm
  • Weight: 37 kg
  • Plug type: UK 3-pin plug
  • User level: Home workshop
3
Precision and strength
PROMAC Drill Press 370ELB
A compact and robust drill press from PROMAC with a single-speed motor, self-tightening drill chuck and safety features that make it suitable for workshops and precision work.
Why it was chosen: The PROMAC 370ELB is selected as an example of a solid and user-friendly mid-range drill press. It combines simple operation with reliable technical specifications and is suitable for both professional and hobby users.

The PROMAC Drill Press 370ELB is a stationary drill press designed for precision drilling in metal and other hard materials. The machine is powered by a 230 V motor with an output of 0.75 kW and has a single speed that is adjusted via a V-belt.

It is equipped with a 16 mm self-tightening drill chuck, protective guard and emergency stop button for increased safety during use. The worktable has adjustable cross slots that provide flexibility when clamping workpieces, and a safety system prevents automatic restart after a power failure.

An integrated LED work light provides targeted illumination of the drilling area, improving precision when working with detailed pieces. The machine’s construction and weight of 74 kg contribute to stable operation with minimal vibration.

With a speed range from 290 to 2300 revolutions per minute and a drilling depth of up to 80 mm, the 370ELB is suitable for a wide range of drilling tasks in the workshop.

  • Single-speed motor: Simple and reliable design with V-belt adjustment.
  • Self-tightening drill chuck: Allows quick bit changes without using a key.
  • Safety features: Protective guard, emergency stop and system against automatic restart.
  • LED work light: Provides precise illumination of the drilling area.
  • Stable construction: 74 kg machine weight reduces vibrations during operation.

Pros and cons

  • Robust and stable construction
  • Easy operation with V-belt adjustment
  • Built-in LED light for better work illumination
  • Safety system against automatic start
  • Suitable for precision drilling in metal
  • Only a single-speed motor may limit flexibility with certain materials
  • Relatively heavy machine, requires fixed placement on the workbench

Pros and cons

Pros

  • Robust and stable construction
  • Easy operation with V-belt adjustment
  • Built-in LED light for better work illumination
  • Safety system against automatic start
  • Suitable for precision drilling in metal

Cons

  • Only a single-speed motor may limit flexibility with certain materials
  • Relatively heavy machine, requires fixed placement on the workbench

Pros

  • Robust and stable construction
  • Easy operation with V-belt adjustment
  • Built-in LED light for better work illumination
  • Safety system against automatic start
  • Suitable for precision drilling in metal

Cons

  • Only a single-speed motor may limit flexibility with certain materials
  • Relatively heavy machine, requires fixed placement on the workbench
Pros: The machine has a robust and stable construction, is easy to operate with V-belt adjustment, has built-in LED light for better work illumination, a safety system against automatic start and is suitable for precision drilling in metal.
Cons: It only has a single-speed motor, which may limit flexibility with certain materials, and it is relatively heavy, requiring a fixed placement on the workbench.
Pros: The machine has a robust and stable construction, is easy to operate with V-belt adjustment, has built-in LED light for better work illumination, a safety system against automatic start and is suitable for precision drilling in metal.
Cons: It only has a single-speed motor, which may limit flexibility with certain materials, and it is relatively heavy, requiring a fixed placement on the workbench.

Specifications

  • Motor voltage: 230 V
  • Motor power: 0.75 kW
  • Spindle taper: MK-2
  • Drilling capacity in steel: Ø16 mm
  • Drilling depth: 80 mm
  • Number of speeds: 12 steps
  • Speed range: 290–2300 min⁻¹
  • Table load: 40 kg
  • T-slot: 12 mm
  • Weight: 74 kg
  • Model number / SKU: 370ELB
4
Powerful precision drilling
Holzmann Drill Press with XL Table ZS40HS 400V
A powerful drill press from Holzmann with a solid cast iron construction, height-adjustable XL table and oil-bath gearbox that ensures stable and precise drilling in large workpieces.
Why it was chosen: The ZS40HS 400V was selected as a representative of stationary drill presses with high performance and a large working surface. It combines robust construction with flexible adjustment options, making it suitable for both professional and demanding hobby users.

The Holzmann ZS40HS 400V is a stationary drill press designed for precision work in metal and wood. It is equipped with an extra-large cast iron worktable that can be height-adjusted and rotated 360 degrees around the centre axis. The table has 14 mm T-slots, allowing workpieces and accessories to be securely fastened during operation.

The machine’s gearbox can be both height-adjusted and tilted, providing flexibility when drilling at different angles. The gears are oil-bathed to ensure smooth and quiet operation as well as long service life. The powerful motor delivers continuous drilling power, making the machine suitable for demanding tasks.

For increased safety, the spindle guard is height-adjustable and equipped with a microswitch. The machine is supplied with a drill chuck (16 mm), reducers (MT4/3 and MT3/2), wedge and drawbar, so it can be used straight away.

With a maximum height of over two metres and a weight of 320 kg, the ZS40HS 400V is a stable and solid machine built for precision and durability in workshop environments.

  • XL worktable: Large cast iron table (550 × 480 mm) with 360° rotation and T-slots.
  • Adjustable gearbox head: Can be tilted and height-adjusted for flexible drilling.
  • Oil-bath gears: Ensure smooth operation and reduced wear.
  • Powerful motor: Delivers continuous drilling power for demanding tasks.
  • Safety feature: Spindle guard with microswitch for increased safety.

Pros and cons

  • Solid cast iron construction
  • Large working surface with flexible adjustment
  • Oil-bath gears for smooth operation
  • Supplied with necessary accessories
  • Suitable for large and heavy workpieces
  • High weight of 320 kg requires fixed placement
  • Requires 400V power supply
  • Not suitable for small hobby workshops with limited space

Pros and cons

Pros

  • Solid cast iron construction
  • Large working surface with flexible adjustment
  • Oil-bath gears for smooth operation
  • Supplied with necessary accessories
  • Suitable for large and heavy workpieces

Cons

  • High weight of 320 kg requires fixed placement
  • Requires 400V power supply
  • Not suitable for small hobby workshops with limited space

Pros

  • Solid cast iron construction
  • Large working surface with flexible adjustment
  • Oil-bath gears for smooth operation
  • Supplied with necessary accessories
  • Suitable for large and heavy workpieces

Cons

  • High weight of 320 kg requires fixed placement
  • Requires 400V power supply
  • Not suitable for small hobby workshops with limited space
Pros: The machine has a solid cast iron construction, a large working surface with flexible adjustment and an oil-bath gearbox that ensures smooth operation; it comes with all necessary accessories and is suitable for large and heavy workpieces.
Cons: The high weight of 320 kg requires a fixed placement, it must be connected to a 400V power supply, and is therefore not suitable for small hobby workshops with limited space.
Pros: The machine has a solid cast iron construction, a large working surface with flexible adjustment and an oil-bath gearbox that ensures smooth operation; it comes with all necessary accessories and is suitable for large and heavy workpieces.
Cons: The high weight of 320 kg requires a fixed placement, it must be connected to a 400V power supply, and is therefore not suitable for small hobby workshops with limited space.

Specifications

  • Model: ZS40HS 400V
  • Manufacturer: Holzmann
  • Motor power (S6/S1): 1500/1100 W
  • Voltage: 400 V
  • Cable length: 2.5 m
  • Table size: 550 × 480 mm
  • Maximum height: 2120 mm
  • Quill travel: 120 mm
  • Distance spindle–base: 1250 mm
  • Maximum distance spindle–table: 790 mm
  • Weight: 320 kg
  • Included accessories: Drill chuck 16 mm, reducer MT4/3 and MT3/2, wedge, drawbar
5
Precision and strength

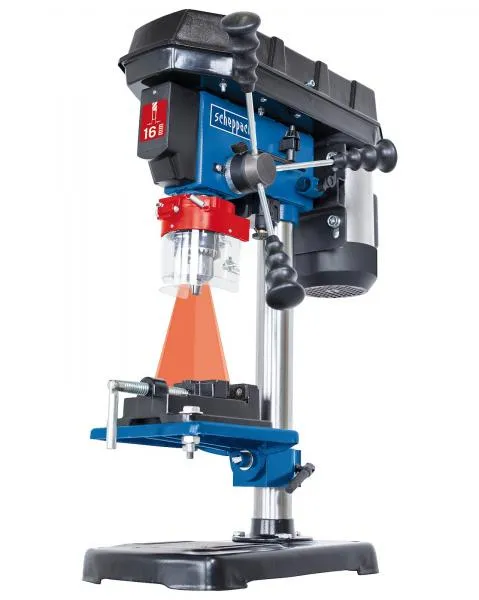

Scheppach DP16VLS bench drill
A bench drill with an integrated positioning laser that provides accurate drill holes in metal, wood and other materials. The machine combines a compact design with features usually found in larger models.
Why it was chosen: The Scheppach DP16VLS was selected for its combination of precision, ease of use and solid construction. It represents a good example of a compact workshop drill that delivers stable results for both hobby and light professional use.

The Scheppach DP16VLS is a stationary bench drill designed for precision drilling in various materials such as metal and wood. The built-in positioning laser helps to mark the drilling point accurately, making the work more efficient and precise.

The machine is powered by a 500 W motor running on 230 volts and offers five different speeds from 600 to 2600 revolutions per minute. This allows the user to adjust the speed according to the material and drilling task.

The drill chuck ranges from 3 to 16 mm, and the maximum drilling diameter is 16 mm. The worktable measures 160 x 168 mm, and the column diameter is 46 mm, providing stability during drilling. The spindle travel is 46 mm, and the machine has an overall size of 460 x 255 x 630 mm.

With a weight of 17 kg, the DP16VLS is light enough to be moved when needed, yet robust enough to remain stable during use. A vice is included as standard, increasing flexibility when clamping workpieces.

  • Positioning laser: Provides precise marking of the drilling point.
  • Flexible speed control: Five speeds from 600 to 2600 rpm.
  • Powerful motor: 500 W motor for versatile drilling tasks.
  • Stable construction: 46 mm column diameter and solid base for safe operation.
  • Included vice: Makes it easier to secure workpieces during drilling.

Pros and cons

  • Built-in laser for precise drilling
  • Multiple speed settings for different materials
  • Compact and stable construction
  • Included vice increases versatility
  • Limited spindle travel of 46 mm can be a challenge for deeper drilling
  • Not intended for heavy industrial use

Pros and cons

Pros

  • Built-in laser for precise drilling
  • Multiple speed settings for different materials
  • Compact and stable construction
  • Included vice increases versatility

Cons

  • Limited spindle travel of 46 mm can be a challenge for deeper drilling
  • Not intended for heavy industrial use

Pros

  • Built-in laser for precise drilling
  • Multiple speed settings for different materials
  • Compact and stable construction
  • Included vice increases versatility

Cons

  • Limited spindle travel of 46 mm can be a challenge for deeper drilling
  • Not intended for heavy industrial use
Pros: The drill has a built-in laser that ensures precise drilling, multiple speed settings for different materials, a compact and stable construction, and an included vice that increases versatility.
Cons: The limited spindle travel of 46 mm can make deeper drilling difficult, and the machine is not intended for heavy industrial use.
Pros: The drill has a built-in laser that ensures precise drilling, multiple speed settings for different materials, a compact and stable construction, and an included vice that increases versatility.
Cons: The limited spindle travel of 46 mm can make deeper drilling difficult, and the machine is not intended for heavy industrial use.

Specifications

  • Motor power: 500 W – 230 V
  • Revolutions/min: 1450
  • Speeds: 600 / 900 / 1300 / 1800 / 2600 rpm
  • Drill chuck: 3–16 mm
  • Max. drilling diameter: 16 mm
  • Worktable: 160 × 168 mm
  • Column diameter: 46 mm
  • Spindle travel: 46 mm
  • Dimensions (L × W × H): 460 × 255 × 630 mm
  • Weight: 17 kg
  • Included accessories: Vice
  • Item number (SKU): 5906810901
6
Precision in focus
Optimum Drill Press OPTIdrill DQ 14
A stable and precision-oriented drill press from Optimum with an adjustable drill table, powerful motor and solid die-cast aluminium construction.
Why it was chosen: The OPTIdrill DQ 14 was selected for its combination of precision, robustness and user-friendliness. It represents a solid choice for both hobbyists and workshop users who want a compact drill press with high accuracy.

The Optimum OPTIdrill DQ 14 is a drill press designed for precision drilling in metal and other materials. The machine is made of die-cast aluminium and equipped with a soft-grip handle, providing stable and comfortable operation.

The drill table can both tilt ±45° and rotate 360°, offering flexibility for various drilling tasks. A clear depth scale and a separate emergency stop button contribute to safe and controlled operation.

The spindle is mounted with precision ball bearings and delivers a concentricity accuracy of less than 0.03 mm, making the machine suitable for tasks where precision is crucial. The quick-action chuck and GATES quality belt ensure efficient power transmission.

With a motor power of 0.35 kW and a speed range from 700 to 2500 revolutions per minute distributed over five steps, the machine can be adapted to different materials and drilling types. The large base plate with T-slots provides stability during operation.

  • Precision drilling: Concentricity accuracy below 0.03 mm for high precision.
  • Flexible drill table: Can tilt ±45° and rotate 360° for versatile use.
  • Solid construction: Die-cast aluminium with soft-grip handle for stability and comfort.
  • Efficient power transmission: Equipped with GATES quality belt and precision ball bearings.
  • Safe operation: Separate emergency stop and 24 V DC safety voltage.

Pros and cons

  • High precision and stable operation
  • Adjustable and rotatable drill table
  • Robust aluminium construction
  • Compact size suitable for workbenches
  • Safety features such as emergency stop and low voltage
  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual speed adjustment via pulleys

Pros and cons

Pros

  • High precision and stable operation
  • Adjustable and rotatable drill table
  • Robust aluminium construction
  • Compact size suitable for workbenches
  • Safety features such as emergency stop and low voltage

Cons

  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual speed adjustment via pulleys

Pros

  • High precision and stable operation
  • Adjustable and rotatable drill table
  • Robust aluminium construction
  • Compact size suitable for workbenches
  • Safety features such as emergency stop and low voltage

Cons

  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual speed adjustment via pulleys
Pros: The machine has high precision and stable operation, an adjustable and rotatable drill table, a robust aluminium construction as well as a compact size making it suitable for workbenches, and it is equipped with safety features such as emergency stop and low voltage.
Cons: It has a limited drilling capacity compared to larger pillar drill presses and requires manual speed adjustment via pulleys.
Pros: The machine has high precision and stable operation, an adjustable and rotatable drill table, a robust aluminium construction as well as a compact size making it suitable for workbenches, and it is equipped with safety features such as emergency stop and low voltage.
Cons: It has a limited drilling capacity compared to larger pillar drill presses and requires manual speed adjustment via pulleys.

Specifications

  • Manufacturer: Optimum
  • Model: OPTIdrill DQ 14
  • SKU: SM-3191040
  • Column diameter: 46 mm
  • Length: approx. 472 mm
  • Width/depth: approx. 283 mm
  • Height: approx. 634 mm
  • Weight: approx. 18.5 kg
  • Drilling capacity in steel (S235JR): 13 mm
  • Continuous drilling capacity in steel (S235JR): 12 mm
  • Drill table size: 170 × 170 mm
  • T-slot size: 14 mm (2 pcs., diagonal type)
  • Drill table rotation: 360°
  • Drill table angle: ±45°
  • Max. distance spindle – drill table: 250 mm
  • Max. distance spindle – machine base: 340 mm
  • Drive motor power: 0.35 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz
  • Speed range: 700–2500 min⁻¹ (5 steps)
  • Spindle stroke: 52 mm
  • Spindle chuck: B16
  • Reach: 104 mm
7
Precision and strength
Proxxon Drill Press TBH
A compact and precise drill press from Proxxon with DC motor, stepwise speed control and robust construction for precision drilling in metal and other materials.
Why it was chosen: The Proxxon Drill Press TBH was selected for its combination of precision, reliability and compact design. It represents a solid choice for users who need accurate drilling in smaller workpieces, both in hobby and workshop environments.

The Proxxon TBH is a drill press developed for precision work, where stability and accuracy are crucial. The machine is powered by a powerful DC motor with a long service life, ensuring smooth operation and constant torque under load.

The height is easily adjusted via a rack-and-pinion mechanism with a hand crank, providing precise control over the drilling position. The spindle drive is equipped with triple pulleys that allow for three speed levels – 1080, 2400 and 4500 revolutions per minute – so the user can adapt the speed to the material.

The machine has a drilling depth scale with adjustable stop, and the drill spindle is mounted in precision ball bearings to ensure stable operation. The spindle head has a 1/2" thread and fits an industrial-quality RÖHM geared drill chuck. In addition, the spindle can be equipped with collets (no. 28200) for extra precision work.

With a column of 45 x 500 mm, a worktable of 200 x 200 mm and a weight of around 10 kg, the TBH is both stable and compact, making it suitable for smaller workshops and precision tasks in metal and plastic.

  • DC motor: Long-lasting motor with stable operation and low vibration.
  • Stepwise speed control: Three speed levels (1080, 2400 and 4500 rpm) for different materials.
  • Precise height adjustment: Rack-and-pinion with hand crank for easy and accurate setting.
  • Stable construction: Column and table in robust design for precision drilling.
  • Compatibility: Fits RÖHM geared drill chuck and collets no. 28200.

Pros and cons

  • Precise and stable operation with ball bearings in the spindle
  • Long service life thanks to the DC motor
  • Easy height adjustment with hand crank
  • Option to use collets for precision drilling
  • Compact and solid construction
  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual belt change for speed adjustment

Pros and cons

Pros

  • Precise and stable operation with ball bearings in the spindle
  • Long service life thanks to the DC motor
  • Easy height adjustment with hand crank
  • Option to use collets for precision drilling
  • Compact and solid construction

Cons

  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual belt change for speed adjustment

Pros

  • Precise and stable operation with ball bearings in the spindle
  • Long service life thanks to the DC motor
  • Easy height adjustment with hand crank
  • Option to use collets for precision drilling
  • Compact and solid construction

Cons

  • Limited drilling capacity compared to larger pillar drill presses
  • Requires manual belt change for speed adjustment
Pros: The machine has precise and stable operation thanks to the ball bearings in the spindle, long service life due to the DC motor, easy height adjustment with hand crank, option to use collets for precision drilling, and a compact and solid construction.
Cons: It has a limited drilling capacity compared to larger pillar drill presses and requires manual belt change to adjust the speed.
Pros: The machine has precise and stable operation thanks to the ball bearings in the spindle, long service life due to the DC motor, easy height adjustment with hand crank, option to use collets for precision drilling, and a compact and solid construction.
Cons: It has a limited drilling capacity compared to larger pillar drill presses and requires manual belt change to adjust the speed.

Specifications

  • Voltage: 220–240 V
  • Speeds: 1080 / 2400 / 4500 rpm
  • Spindle travel: 63 mm
  • Height adjustment: 70 mm via hand crank
  • Throat depth: 120 mm
  • Table working area: 200 × 200 mm
  • Column: 45 × 500 mm
  • Max. drilling capacity in steel: 10 mm
  • Clamping range: up to 10 mm
  • Weight: approx. 10 kg
  • Compatible drill chuck: RÖHM geared drill chuck (1/2" thread)
  • Option for collets: no. 28200
  • SKU: ROL-28124
8
Precision and power
Record Drill Press DP58B Heavy Duty
A robust drill press from Record with cast iron construction, induction motor and 12 speeds that provide precise drilling in both wood and metal.
Why it was chosen: The Record DP58B Heavy Duty was selected for its combination of solid construction, flexible speed settings and versatility for both metal and woodworking. It represents a classic choice for users who want a stable and reliable drill press for the workshop.

The Record DP58B Heavy Duty is a stationary drill press constructed from steel and cast iron to ensure stability and long service life. It is equipped with a powerful induction motor that delivers smooth operation and can handle both hardwood and metal parts.

The machine has a cast iron table with slots that make it possible to securely mount a vice. The table can tilt up to 45 degrees, providing flexibility when drilling at angles. A rack and pinion system makes it easy to adjust the table height.

With 12 different speeds, the user can adapt the speed to the material, making the machine suitable for many types of drilling tasks. The spindle housing is designed to minimise vibrations and ensure precision during work.

The machine has a maximum chuck capacity of 16 mm, a weight of 55 kg and a total height of 1050 mm, making it suitable for both professional and hobby users who want a stable and precise drill press.

  • 12 speeds: Allows precise adjustment for different materials.
  • Cast iron table: Can tilt up to 45° and has slots for vice mounting.
  • Induction motor: Delivers stable power for drilling in both wood and metal.
  • Solid construction: Steel and cast iron reduce vibrations and increase precision.
  • Ergonomic design: Handles and height adjustment are designed for easy operation.

Pros and cons

  • Robust and vibration-damping construction
  • Flexible speed control with 12 steps
  • Suitable for both metal and woodworking
  • Cast iron table with angle adjustment
  • Long service life thanks to the induction motor
  • Relatively heavy machine, requires fixed placement
  • Requires manual belt change for speed adjustment

Pros and cons

Pros

  • Robust and vibration-damping construction
  • Flexible speed control with 12 steps
  • Suitable for both metal and woodworking
  • Cast iron table with angle adjustment
  • Long service life thanks to the induction motor

Cons

  • Relatively heavy machine, requires fixed placement
  • Requires manual belt change for speed adjustment

Pros

  • Robust and vibration-damping construction
  • Flexible speed control with 12 steps
  • Suitable for both metal and woodworking
  • Cast iron table with angle adjustment
  • Long service life thanks to the induction motor

Cons

  • Relatively heavy machine, requires fixed placement
  • Requires manual belt change for speed adjustment
Pros: The machine has a robust and vibration-damping construction, offers flexible speed control with 12 steps, is suitable for both metal and woodworking, has a cast iron table with angle adjustment and long service life thanks to the induction motor.
Cons: It is relatively heavy and therefore requires a fixed placement, and speed changes must be made manually by changing the belt.
Pros: The machine has a robust and vibration-damping construction, offers flexible speed control with 12 steps, is suitable for both metal and woodworking, has a cast iron table with angle adjustment and long service life thanks to the induction motor.
Cons: It is relatively heavy and therefore requires a fixed placement, and speed changes must be made manually by changing the belt.

Specifications

  • Model: DP58B Heavy Duty
  • Manufacturer: Record
  • Item number (SKU): RECDP58B-EP
  • Voltage: 230V
  • Motor input P1/P2: 0.6 kW / 0.37 kW
  • Distance from column to spindle: 165 mm
  • Table stroke: 80 mm
  • Distance from chuck to table: 371 mm
  • Distance from chuck to base: 548 mm
  • Chuck capacity: 16 mm
  • Speeds: 180, 250, 300, 400, 480, 580, 970, 1280, 1410, 1540, 2270, 2740 rpm
  • Weight: 55 kg
  • Size: H1050 × W270 × D563 mm
9
Precision in focus

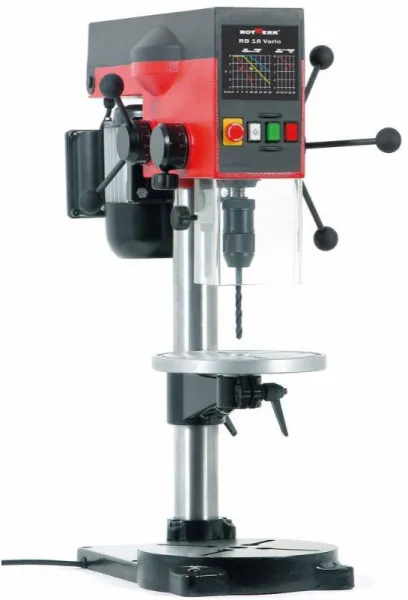

Rotwerk Drill Press RB18 Vario
A compact and robust drill press from Rotwerk with variable drive, allowing speed adjustment without opening the machine. Suitable for both professional and demanding hobby users.
Why it was chosen: The RB18 Vario was selected for its combination of German engineering, stepless speed control, and solid performance. It represents a versatile choice for users seeking precision and flexibility in drilling work.

The Rotwerk RB18 Vario is a drill press designed for precision drilling in metal and other materials. It is equipped with a vario drive that allows stepless spindle speed adjustment without having to open or disassemble the machine.

The machine is powered by a 600 W motor and is designed to maintain torque throughout the entire speed range. This provides a stable and smooth drilling process at any speed. The drive and construction are made in Germany, supporting the machine’s quality and durability.

The RB18 Vario has a drilling capacity of up to 18 mm in steel and a spindle taper of type MK2. It is equipped with a drill chuck ranging from 1 to 16 mm and offers two speed ranges: 290–880 min⁻¹ and 880–2400 min⁻¹. The machine has a drilling depth of 50 mm and a throat depth of 115 mm.

With a column diameter of 60 mm, a column height of 600 mm, and a total height of 765 mm, the RB18 Vario is a stable and compact machine weighing approximately 31 kg. It is suitable for both workshops and hobby rooms where precision and flexibility are important.

  • Vario drive: Stepless adjustment of spindle speed without disassembling the machine.
  • Stable torque: Maintains power throughout the entire speed range.
  • German production: Drive and construction made in Germany.
  • Powerful motor: 600 W motor for demanding drilling tasks.
  • Precision drilling: Drilling capacity up to 18 mm in steel.

Pros and cons

  • Stepless speed control via vario drive
  • Stable and robust construction
  • Maintains torque at low speed
  • Suitable for both professional and hobby use
  • German-made drive for high quality
  • Relatively high weight of approx. 31 kg can make it less mobile
  • Limited drilling depth of 50 mm compared to larger pillar drill presses

Pros and cons

Pros

  • Stepless speed control via vario drive
  • Stable and robust construction
  • Maintains torque at low speed
  • Suitable for both professional and hobby use
  • German-made drive for high quality

Cons

  • Relatively high weight of approx. 31 kg can make it less mobile
  • Limited drilling depth of 50 mm compared to larger pillar drill presses

Pros

  • Stepless speed control via vario drive
  • Stable and robust construction
  • Maintains torque at low speed
  • Suitable for both professional and hobby use
  • German-made drive for high quality

Cons

  • Relatively high weight of approx. 31 kg can make it less mobile
  • Limited drilling depth of 50 mm compared to larger pillar drill presses
Pros: The machine has stepless speed control via vario drive, a stable and robust construction, maintains torque at low speed, is suitable for both professional and hobby use, and is equipped with a German-made drive ensuring high quality.
Cons: The relatively high weight of around 31 kg makes it less mobile, and the limited drilling depth of 50 mm is lower than on larger pillar drill presses.
Pros: The machine has stepless speed control via vario drive, a stable and robust construction, maintains torque at low speed, is suitable for both professional and hobby use, and is equipped with a German-made drive ensuring high quality.
Cons: The relatively high weight of around 31 kg makes it less mobile, and the limited drilling depth of 50 mm is lower than on larger pillar drill presses.

Specifications

  • Model: RB18 Vario
  • Manufacturer: Rotwerk
  • Mains voltage: 230 V / 50 Hz
  • Power: 600 W
  • Drill chuck: 1–16 mm
  • Spindle taper: MK2
  • Drilling capacity in steel: 18 mm
  • Speed range I: 290–880 min⁻¹
  • Speed range II: 880–2400 min⁻¹
  • Torque range I: 5.3–4.0 Nm
  • Torque range II: 1.8–1.3 Nm
  • Throat depth: 115 mm
  • Drilling depth: 50 mm
  • Column diameter: 60 mm
  • Column height: 600 mm
  • Total height: 765 mm
  • Weight: approx. 31 kg
  • SKU: RB18VARIO
10
Precision and strength
Axminster Workshop Drill Press AW285PD 230V
A stable and robust drill press from Axminster Workshop with a 350 W induction motor, five belt speeds and a keyless chuck – ideal for hobby and home workshops.
Why it was chosen: The AW285PD is selected as an example of a compact and reliable drill press that combines solid cast iron construction with user-friendly features such as depth control and an adjustable table. It represents a good choice for users who want precision and stability in smaller drilling tasks.

The Axminster Workshop AW285PD is a drill press designed for smaller workshops and hobby use, where precision and stability are important. The machine is made of cast iron and machined steel, providing a solid base and reducing vibrations during operation.

It is powered by a 350 W induction motor that delivers smooth and quiet operation. The user can choose between five belt speeds from 600 to 2,500 revolutions per minute, allowing the speed to be adjusted for different materials and drilling tasks.

The machine is equipped with a keyless chuck that can handle drill bits from 1 to 13 mm, as well as a depth control that ensures consistent drilling depth. The table can be adjusted in height and tilted from 45° to 0° to 45°, providing flexibility for various tasks.

A front-mounted NVR switch and an adjustable safety guard contribute to safe operation. The belt cover also has a safety switch that prevents accidental start-up during speed changes. The combination of compact size and robust construction makes the AW285PD suitable for both beginners and experienced users who need a reliable drill press for precision work.

  • Solid construction: Cast iron and machined steel provide stability and reduce vibrations.
  • Efficient motor: 350 W induction motor with smooth and quiet operation.
  • Flexible speed control: Five belt speeds from 600 to 2,500 rpm.
  • Keyless chuck: Makes it quick to change drill bits between 1 and 13 mm.
  • Adjustable table: The table can be raised, lowered and tilted for precise positioning.
  • Safe operation: NVR switch and safety guard increase safety during use.

Pros and cons

  • Robust and vibration-damping construction
  • Smooth operation with induction motor
  • Multiple speed settings for different materials
  • Easy operation with keyless chuck
  • Compact size suitable for smaller workshops
  • Not suitable for cast iron or very heavy drilling tasks
  • UK 3-pin plug may require an adapter for use in Norway

Pros and cons

Pros

  • Robust and vibration-damping construction
  • Smooth operation with induction motor
  • Multiple speed settings for different materials
  • Easy operation with keyless chuck
  • Compact size suitable for smaller workshops

Cons

  • Not suitable for cast iron or very heavy drilling tasks
  • UK 3-pin plug may require an adapter for use in Norway

Pros

  • Robust and vibration-damping construction
  • Smooth operation with induction motor
  • Multiple speed settings for different materials
  • Easy operation with keyless chuck
  • Compact size suitable for smaller workshops

Cons

  • Not suitable for cast iron or very heavy drilling tasks
  • UK 3-pin plug may require an adapter for use in Norway
Pros: The machine has a robust and vibration-damping construction, runs smoothly with its induction motor, offers multiple speed settings for different materials, is easy to operate with a keyless chuck and has a compact size making it suitable for smaller workshops.
Cons: It is not suitable for cast iron or very heavy drilling tasks, and the supplied UK 3-pin plug may require an adapter for use in Norway.
Pros: The machine has a robust and vibration-damping construction, runs smoothly with its induction motor, offers multiple speed settings for different materials, is easy to operate with a keyless chuck and has a compact size making it suitable for smaller workshops.
Cons: It is not suitable for cast iron or very heavy drilling tasks, and the supplied UK 3-pin plug may require an adapter for use in Norway.

Specifications

  • Model: AW285PD
  • Item number (SKU): AX107690
  • Voltage: 230 V
  • Power: 350 W
  • Speeds: 5 steps (600–2,500 rpm)
  • Chuck capacity: 1–13 mm
  • Chuck type: Keyless
  • Chuck travel: 50 mm
  • Column diameter: 46 mm
  • Max. distance chuck–spindle: 380 mm
  • Max. distance chuck–table: 285 mm
  • Max. drilling in mild steel: 13 mm
  • Table size: 165 × 165 mm
  • Table angle: 45° – 0° – 45°
  • Throat depth: 105 mm
  • Dimensions (L × W × H): 500 × 280 × 735 mm
  • Weight: 26 kg
  • Plug type: UK 3-pin
11
Precision and strength

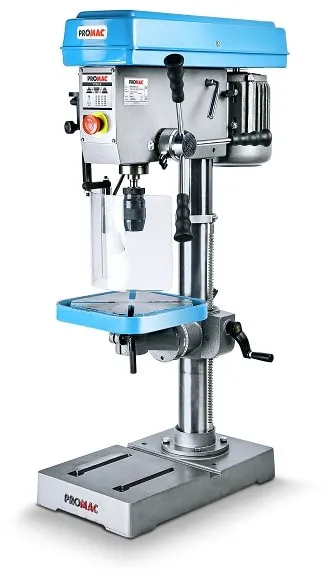

PROMAC Drill Press 371ELB
A robust drill press from PROMAC with a 400 V motor, stepless speed adjustment via V-belt, and safety equipment such as an emergency stop and protective guard.
Why it was chosen: The PROMAC 371ELB is selected as an example of a compact, professional drill press for workshop use, combining solid construction, user-friendliness, and safety features.

The PROMAC Drill Press 371ELB is a stationary drill press designed for precision work in metal and other hard materials. It is powered by a 400-volt motor with an output of 0.75 kW, providing stable operation and sufficient power for most drilling tasks in the workshop.

The machine has speed adjustment via V-belt and offers 12 different speed levels in the range of 290–2300 revolutions per minute. This makes it possible to adapt the speed to different materials and drill diameters.

The drill chuck is self-tightening and can handle drills up to 16 mm in diameter. The worktable is equipped with adjustable cross slots and can support up to 40 kg, providing flexibility when clamping workpieces.

For increased safety, the machine is equipped with an emergency stop, protective guard, and a system that prevents automatic restart after a power failure. An integrated LED lamp provides targeted illumination of the drilling area, allowing work to be carried out with high precision.

  • Motor: 400 V, 0.75 kW with 12 speed levels via V-belt.
  • Drilling capacity: Up to 16 mm in steel.
  • Safety: Emergency stop, protective guard, and anti-restart system.
  • Worktable: Adjustable cross slots and load capacity up to 40 kg.
  • Lighting: Built-in LED lamp for better visibility during work.

Pros and cons

  • Stable and powerful motor for precision drilling
  • Option for speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • LED work lamp for better visibility
  • Solid construction with high weight for stability
  • Requires 400 V power supply, which may limit use in private workshops
  • Manual speed adjustment via V-belt can take some time

Pros and cons

Pros

  • Stable and powerful motor for precision drilling
  • Option for speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • LED work lamp for better visibility
  • Solid construction with high weight for stability

Cons

  • Requires 400 V power supply, which may limit use in private workshops
  • Manual speed adjustment via V-belt can take some time

Pros

  • Stable and powerful motor for precision drilling
  • Option for speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • LED work lamp for better visibility
  • Solid construction with high weight for stability

Cons

  • Requires 400 V power supply, which may limit use in private workshops
  • Manual speed adjustment via V-belt can take some time
Pros: The drill press has a stable and powerful motor that ensures precision drilling, the option for speed adjustment via V-belt, safety features such as emergency stop and protective guard, an LED work lamp for better visibility, and a solid construction with high weight that provides good stability.
Cons: It requires a 400 V power supply, which may limit use in private workshops, and the manual speed adjustment via V-belt can take some time.
Pros: The drill press has a stable and powerful motor that ensures precision drilling, the option for speed adjustment via V-belt, safety features such as emergency stop and protective guard, an LED work lamp for better visibility, and a solid construction with high weight that provides good stability.
Cons: It requires a 400 V power supply, which may limit use in private workshops, and the manual speed adjustment via V-belt can take some time.

Specifications

  • Motor voltage: 400 V
  • Motor power: 0.75 kW
  • Spindle taper: MK-2
  • Drilling capacity in steel: Ø16 mm
  • Drilling depth: 80 mm
  • Number of speeds: 12
  • Speed range: 290–2300 min⁻¹
  • Table load: 40 kg
  • T-slot: 12 mm
  • Weight: 74 kg
  • Model number: 371ELB
12
Precision and strength

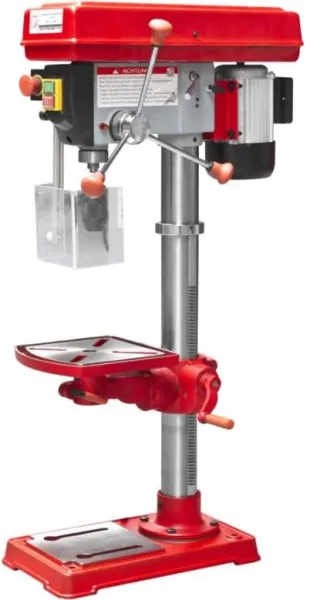

Holzmann Drill Press SB4116HM 230V
A robust drill press from Holzmann with a powerful motor, adjustable worktable and solid steel construction, suitable for workshops and hobby users who need precise drilling tasks.
Why it was chosen: The Holzmann SB4116HM 230V was selected for its combination of stability, adjustability and powerful motor. It represents a classic choice among drill presses for both professionals and DIY users who value precision and reliability.

The Holzmann SB4116HM 230V is a drill press designed with a focus on stability and accuracy. The machine has a solid, polished base with T-slots, providing a secure foundation during work. The stainless steel column contributes to the machine’s rigidity and precision during drilling.

The motor is an aluminium motor with IP54 protection, providing a good balance between performance and durability. The worktable can both tilt from -45° to +45° and rotate 360° around its axis, making it possible to drill at different angles and positions.

The machine comes with a self-tightening drill chuck (3–16 mm, B16), and the spindle is equipped with a protective cover for increased safety. The combination of adjustability, power and precision makes it suitable for both metal and woodwork in smaller workshops.

With a maximum drilling capacity of 16 mm, 12 speed levels from 180 to 2740 revolutions per minute and a maximum height of 1060 mm, the SB4116HM offers a flexible working platform for many types of drilling tasks.

  • Powerful motor: 600 W (S1) / 900 W (S6) with IP54 protection.
  • Adjustable worktable: Can tilt from -45° to +45° and rotate 360°.
  • Solid construction: Stainless steel column and polished base with T-slots.
  • Flexible drilling capacity: Up to 16 mm drilling diameter and 12 speed levels.
  • Safety: Spindle guard and stable base for precise work.

Pros and cons

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable
  • Powerful motor with IP54 protection
  • Suitable for both metal and woodwork
  • Comes with self-tightening drill chuck
  • Relatively high weight of 50 kg can make it less mobile
  • Requires a fixed workspace and correct setup for optimal precision

Pros and cons

Pros

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable
  • Powerful motor with IP54 protection
  • Suitable for both metal and woodwork
  • Comes with self-tightening drill chuck

Cons

  • Relatively high weight of 50 kg can make it less mobile
  • Requires a fixed workspace and correct setup for optimal precision

Pros

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable
  • Powerful motor with IP54 protection
  • Suitable for both metal and woodwork
  • Comes with self-tightening drill chuck

Cons

  • Relatively high weight of 50 kg can make it less mobile
  • Requires a fixed workspace and correct setup for optimal precision
Pros: The machine has a stable and robust stainless steel construction, an adjustable and rotatable worktable, and a powerful motor with IP54 protection, making it suitable for both metal and woodwork, and it also comes with a self-tightening drill chuck.
Cons: The relatively high weight of 50 kg makes it less mobile, and it requires a fixed workspace and correct setup to achieve optimal precision.
Pros: The machine has a stable and robust stainless steel construction, an adjustable and rotatable worktable, and a powerful motor with IP54 protection, making it suitable for both metal and woodwork, and it also comes with a self-tightening drill chuck.
Cons: The relatively high weight of 50 kg makes it less mobile, and it requires a fixed workspace and correct setup to achieve optimal precision.

Specifications

  • Model: SB4116HM 230V
  • Motor power (S1/S6): 600 W / 900 W
  • Voltage: 230 V
  • Table dimensions: 250 × 250 mm
  • Maximum height: 1060 mm
  • Distance from chuck to column: 170 mm
  • Maximum drilling depth: 80 mm
  • Base plate: 270 × 450 mm
  • Maximum drilling capacity: 16 mm
  • Spindle speed: 12 steps, 180–2740 min⁻¹
  • Distance from spindle to base plate: 695 mm
  • Distance between spindle and table: 495 mm
  • Net weight: 50 kg
  • Package dimensions (L×W×H): 895 × 490 × 290 mm
  • Scope of delivery: Self-tightening drill chuck 3–16 mm, B16
13
Professional drilling power
Optimum Bench Drill OPTIdrill DQ 22 (230V)
A stable bench drill from Optimum with a precision spindle, adjustable drill table and 12-step speed range, suitable for precision drilling in metal and other materials.
Why it was chosen: The OPTIdrill DQ 22 was selected for its combination of precision, solid construction and flexible adjustment options. It represents a professional choice for workshops that require accurate drilling and operational reliability.

The Optimum OPTIdrill DQ 22 is a bench drill designed for precision work and stable operation. The machine is equipped with a separate emergency stop switch and drilling depth stop, which increases safety and allows repeat drilling operations with high accuracy.

The drill table is precisely machined and can both tilt ±45° and rotate 360°, providing flexibility for various drilling tasks. The table has diagonally running T-slots and a circular coolant groove, making it suitable for metalworking.

The machine has a lever arm made of die-cast aluminium with a soft-grip handle, and the spindle is mounted with precision ball bearings to ensure concentricity accuracy of less than 0.03 mm. The quick-action drill chuck and GATES quality belt contribute to smooth and reliable operation.

With a speed range from 300 to 2300 revolutions per minute distributed over 12 steps, the machine can be adapted to different materials and drilling types. It is powered by a 0.55 kW motor at 230 V, making it suitable for standard workshop installations.

  • Precision spindle: Guaranteed concentricity of less than 0.03 mm.
  • Flexible drill table: Can tilt ±45° and rotate 360° for versatile use.
  • Solid construction: Lever arm in die-cast aluminium and sturdy base plate with T-slots.
  • Variable speed: 12-step gearing with speed range from 300 to 2300 min⁻¹.
  • Safe operation: Separate emergency stop and 24 V DC safety voltage.

Pros and cons

  • High precision and stability during drilling
  • Adjustable drill table with great freedom of movement
  • Robust construction in aluminium and steel
  • Wide speed range with 12 steps
  • Suitable for precision work in metal
  • Relatively high weight of approx. 42 kg can make moving difficult
  • Requires a fixed workstation and correct setup for optimal stability

Pros and cons

Pros

  • High precision and stability during drilling
  • Adjustable drill table with great freedom of movement
  • Robust construction in aluminium and steel
  • Wide speed range with 12 steps
  • Suitable for precision work in metal

Cons

  • Relatively high weight of approx. 42 kg can make moving difficult
  • Requires a fixed workstation and correct setup for optimal stability

Pros

  • High precision and stability during drilling
  • Adjustable drill table with great freedom of movement
  • Robust construction in aluminium and steel
  • Wide speed range with 12 steps
  • Suitable for precision work in metal

Cons

  • Relatively high weight of approx. 42 kg can make moving difficult
  • Requires a fixed workstation and correct setup for optimal stability
Pros: The drill has high precision and stability during drilling, an adjustable drill table with great freedom of movement, a robust construction in aluminium and steel, a wide speed range with 12 steps and is suitable for precision work in metal.
Cons: The relatively high weight of around 42 kg can make it difficult to move, and it requires a fixed workstation as well as correct setup to achieve optimal stability.
Pros: The drill has high precision and stability during drilling, an adjustable drill table with great freedom of movement, a robust construction in aluminium and steel, a wide speed range with 12 steps and is suitable for precision work in metal.
Cons: The relatively high weight of around 42 kg can make it difficult to move, and it requires a fixed workstation as well as correct setup to achieve optimal stability.

Specifications

  • Model: OPTIdrill DQ 22
  • Supply voltage: 230 V
  • Power: 0.55 kW
  • Mains frequency: 50 Hz
  • Speed range: 300–2300 min⁻¹ (12 steps)
  • Column diameter: 70 mm
  • Drilling capacity in steel (S235JR): 20 mm
  • Continuous drilling capacity in steel (S235JR): 16 mm
  • Drill table: 270 × 270 mm, T-slot 14 mm, 2 slots, rotation 360°, angle ±45°
  • Max. distance spindle – drill table: 460 mm
  • Max. distance spindle – machine base: 639 mm
  • Spindle taper: MK 2
  • Spindle stroke: 85 mm
  • Reach: 169 mm
  • Dimensions (L×W×H): approx. 700 × 351 × 1006 mm
  • Weight: approx. 41.7 kg
  • Load capacity drill table: 15 kg
14
Precision in miniature

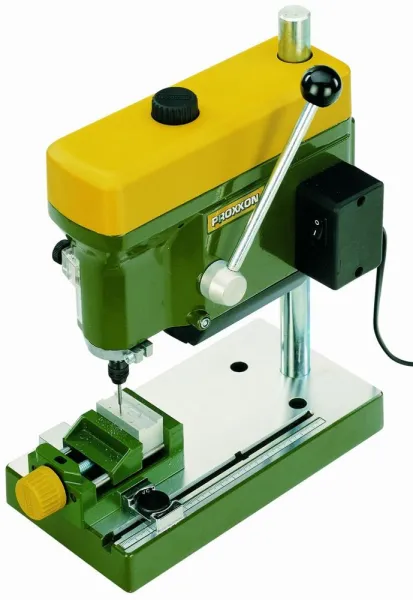

Proxxon Drill Press TBM 220
A compact and precise drill press from Proxxon, developed for detailed drilling work in small pieces. The machine has stepwise belt drive, a plan-milled worktable and a robust construction in die-cast aluminium.
Why it was chosen: The Proxxon TBM 220 was chosen as a representative of compact drill presses with high precision and solid build quality. It is suitable for model building, electronics and other tasks where accuracy is crucial.

The Proxxon TBM 220 is a small but powerful drill press designed for precision work. It can drill holes down to 0.5 mm, making it suitable for tasks where accuracy and control are more important than raw power.

The machine is equipped with a plan-milled worktable in die-cast aluminium measuring 220 x 120 mm, providing a stable and flat surface. The table has both a parallel guide and a scale, making it easier to work precisely with repeated drillings.

The hard-chromed steel column measuring 20 x 280 mm ensures stability, while the die-cast aluminium arm with precise guides contributes to the machine’s rigid and vibration-damped construction.

The TBM 220 is powered by a quiet and durable VDE-tested motor with stepwise belt drive, providing three different speeds: 1,800, 4,700 and 8,500 revolutions per minute. By changing the belt, the user can choose between high speed for small drills and lower speed with increased torque for larger drills.

The machine has a quill stroke of 30 mm and a throat depth of 140 mm (distance from the centre of the column to the centre of the drill). It comes with six MICROMOT collets in sizes 1.0 – 3.2 mm as well as a thread for mounting a keyed drill chuck.

  • Precision drilling: Can drill holes down to 0.5 mm in diameter.
  • Stepwise belt drive: Allows for three speeds – 1,800, 4,700 and 8,500 rpm.
  • Stable construction: Plan-milled worktable and hard-chromed steel column ensure precision.
  • Quality motor: VDE-tested motor with low noise level and long service life.
  • Included collets: Six MICROMOT collets from 1.0 to 3.2 mm.

Pros and cons

  • High precision and stability for small drilling tasks
  • Three speed levels adapted to different materials and drill sizes
  • Compact and robust construction in die-cast aluminium
  • Quiet and reliable motor
  • Suitable for model building, electronics and fine mechanics
  • Limited drilling capacity for larger workpieces
  • Speed change requires manual belt adjustment

Pros and cons

Pros

  • High precision and stability for small drilling tasks
  • Three speed levels adapted to different materials and drill sizes
  • Compact and robust construction in die-cast aluminium
  • Quiet and reliable motor
  • Suitable for model building, electronics and fine mechanics

Cons

  • Limited drilling capacity for larger workpieces
  • Speed change requires manual belt adjustment

Pros

  • High precision and stability for small drilling tasks
  • Three speed levels adapted to different materials and drill sizes
  • Compact and robust construction in die-cast aluminium
  • Quiet and reliable motor
  • Suitable for model building, electronics and fine mechanics

Cons

  • Limited drilling capacity for larger workpieces
  • Speed change requires manual belt adjustment
Pros: The drill press offers high precision and stability for small drilling tasks, three speed levels adapted to different materials and drill sizes, a compact and robust construction in die-cast aluminium, a quiet and reliable motor, and is suitable for model building, electronics and fine mechanics.
Cons: It has limited drilling capacity for larger workpieces, and changing speed requires manual belt adjustment.
Pros: The drill press offers high precision and stability for small drilling tasks, three speed levels adapted to different materials and drill sizes, a compact and robust construction in die-cast aluminium, a quiet and reliable motor, and is suitable for model building, electronics and fine mechanics.
Cons: It has limited drilling capacity for larger workpieces, and changing speed requires manual belt adjustment.

Specifications

  • Model: TBM 220
  • Item number (SKU): ROL-28128
  • Voltage: 220–240 V
  • Power: 85 W
  • Frequency: 50–60 Hz
  • Speed: 1,800 / 4,700 / 8,500 rpm
  • Throat depth: 140 mm
  • Quill stroke: 30 mm
  • Worktable: 220 x 120 mm, plan-milled die-cast aluminium
  • Column: 20 x 280 mm, hard-chromed steel
  • Collets: 6 pcs. MICROMOT (1.0 – 3.2 mm)
  • Thread for drill chuck: 3/8"
  • EAN / Barcode: ROL-28128
15
Precision and strength

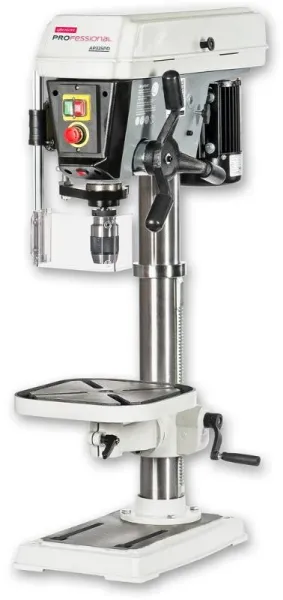

Axminster Professional Bench Drill AP325PD
A solid bench drill from Axminster Professional with a precision spindle, low vibration and high stability, developed for accurate drilling tasks in the workshop.
Why it was chosen: The AP20BD was selected as a representative of professional bench drills with a focus on precision, safety and user-friendliness. It combines robust construction with features that support efficient and safe drilling in metal and wood.

The Axminster Professional AP20BD is a bench drill designed to deliver precise results and stable operation in workshop environments. The machine is equipped with a precision spindle running in NSK ball bearings, which reduces vibrations and ensures smooth rotation during drilling.

The drive system uses Multi-V belts, which provide good grip and contribute to quiet and stable operation. The spindle unit is solidly integrated into the main column, increasing the machine’s overall rigidity and precision.

Safety is prioritised with an electrically locked chuck guard that prevents accidental start-up, as well as a safety switch that cuts power when the belt cover is opened. A built-in LED work light provides good illumination of the work area.

The machine has an ergonomic cast iron handle with rubber grip for comfortable operation. The keyless chuck allows quick bit changes, and the table can be adjusted via rack and pinion. An improved depth stop makes it possible to drill with high accuracy.

With its compact size and solid construction, the AP20BD is suitable for both professional workshops and demanding hobby users who want a stable and precise drill.

  • Precision spindle with NSK bearings: Provides stable and vibration-free drilling.
  • Multi-V belt drive: Ensures smooth power transmission and low noise.
  • Safety switches: Prevents operation with open cover or without guard.
  • LED work light: Improves visibility during work.
  • Ergonomic design: Cast iron handle with rubber grip for comfortable operation.
  • Keyless chuck: Quick and easy bit changes.

Pros and cons

  • Robust construction with high precision
  • Low vibration and stable operation
  • Safety switches and protection against accidental start-up
  • Easy adjustment of table and drilling depth
  • Built-in LED light for better work illumination
  • Relatively high weight of 82 kg may limit mobility
  • Requires a fixed workspace with ample room
  • Manual speed adjustment via pulleys

Pros and cons

Pros

  • Robust construction with high precision
  • Low vibration and stable operation
  • Safety switches and protection against accidental start-up
  • Easy adjustment of table and drilling depth
  • Built-in LED light for better work illumination

Cons

  • Relatively high weight of 82 kg may limit mobility
  • Requires a fixed workspace with ample room
  • Manual speed adjustment via pulleys

Pros

  • Robust construction with high precision
  • Low vibration and stable operation
  • Safety switches and protection against accidental start-up
  • Easy adjustment of table and drilling depth
  • Built-in LED light for better work illumination

Cons

  • Relatively high weight of 82 kg may limit mobility
  • Requires a fixed workspace with ample room
  • Manual speed adjustment via pulleys
Pros: The machine has a robust construction with high precision, low vibration and stable operation, safety switches and protection against accidental start-up, easy adjustment of table and drilling depth, and built-in LED light for better work illumination.
Cons: The relatively high weight of 82 kg may limit mobility, it requires a fixed workspace with ample room, and the speed must be adjusted manually via pulleys.
Pros: The machine has a robust construction with high precision, low vibration and stable operation, safety switches and protection against accidental start-up, easy adjustment of table and drilling depth, and built-in LED light for better work illumination.
Cons: The relatively high weight of 82 kg may limit mobility, it requires a fixed workspace with ample room, and the speed must be adjusted manually via pulleys.

Specifications

  • Model: AP20BD
  • Voltage: 230 V
  • Power: 750 W
  • Speed range: 120 – 2,580 rpm
  • Chuck capacity: 1 – 16 mm (keyless)
  • Chuck travel: 80 mm
  • Morse taper: 2 MT
  • Spindle taper: 2 MT
  • Column diameter: 80 mm
  • Max. drilling in mild steel: 20 mm
  • Max. distance chuck to base: 500 mm
  • Max. distance chuck to table: 325 mm
  • Table size: 290 × 290 mm
  • Table tilt: 45° – 0° – 45°
  • Base size: 450 × 270 mm
  • Throat depth: 178 mm
  • Overall size (L × W × H): 670 × 360 × 1,020 mm
  • Net weight: 82 kg
  • Plug type: EU 2-pin plug
  • Classification: Tradesman/Professional
16
Precision in compact form

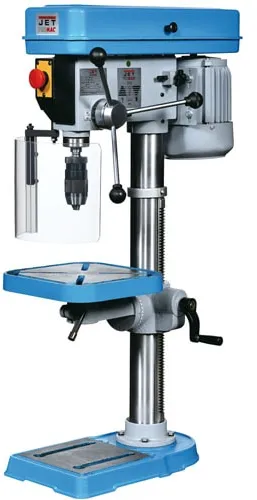

PROMAC Drill 212
A robust drill from PROMAC with 16 mm drilling capacity, adjustable table and safety features, suitable for precision drilling in metal and other materials.
Why it was chosen: PROMAC 212 is chosen as an example of a classic workshop drill, combining solid construction, easy operation and suitable performance for light industrial tasks.

The PROMAC Drill 212 is a stationary drill designed for precision work in metal and other hard materials. It is equipped with a single-speed motor and speed adjustment via V-belt, providing stable operation and the ability to adapt the speed to different drilling tasks.

The machine comes with a 16 mm self-tightening drill chuck, protective guard and emergency stop button, which increase safety during use. The table is adjustable and has cross grooves, making it easier to securely fasten workpieces during drilling.

A built-in safety system prevents automatic restart after a power failure, contributing to a safer working process. The compact size and weight of 45 kg make it suitable for both workshops and smaller production environments where a stable and precise drill is required.

  • Drilling capacity of 16 mm: Suitable for drilling in steel and other metals.
  • Speed adjustment via V-belt: Provides flexibility depending on material and drilling type.
  • Self-tightening drill chuck: Quick and secure fastening of drills without using a key.
  • Adjustable table with cross grooves: Enables precise positioning of workpieces.
  • Safety system against automatic start: Increases safety in the event of a power failure.

Pros and cons

  • Stable construction suitable for workshop use
  • Easy speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • Adjustable table for flexible working position
  • Only one motor speed may limit flexibility for special tasks
  • Requires manual belt change to adjust speed

Pros and cons

Pros

  • Stable construction suitable for workshop use
  • Easy speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • Adjustable table for flexible working position

Cons

  • Only one motor speed may limit flexibility for special tasks
  • Requires manual belt change to adjust speed

Pros

  • Stable construction suitable for workshop use
  • Easy speed adjustment via V-belt
  • Safety features such as emergency stop and protective guard
  • Adjustable table for flexible working position

Cons

  • Only one motor speed may limit flexibility for special tasks
  • Requires manual belt change to adjust speed
Pros: The machine has a stable construction suitable for workshop use, offers easy speed adjustment via V-belt, has safety features such as emergency stop and protective guard, and an adjustable table that provides a flexible working position.
Cons: It has only one motor speed, which may limit flexibility for special tasks, and also requires manual belt change to adjust the speed.
Pros: The machine has a stable construction suitable for workshop use, offers easy speed adjustment via V-belt, has safety features such as emergency stop and protective guard, and an adjustable table that provides a flexible working position.
Cons: It has only one motor speed, which may limit flexibility for special tasks, and also requires manual belt change to adjust the speed.

Specifications

  • Motor voltage: 230 V
  • Motor power: 0.37 kW
  • Spindle taper: MK-2
  • Drilling capacity in steel: Ø16 mm
  • Drilling depth: 80 mm
  • Number of speeds: 5 steps
  • Speed range: 490–2510 min⁻¹
  • Max. table load: 30 kg
  • T-slot: 12 mm
  • Weight: 45 kg
  • Dimensions (A–J): A: 970 mm, B: 560 mm, C: 640 mm, D: 168 mm, E: 73 mm, F: 40 mm, G: 445 mm, H: 320 mm, I: 265 mm, J: 265 mm
  • Item number (SKU): 212
17
Professional precision
Holzmann Bench Drill GBM25 400V
A robust bench drill from Holzmann with a 400V motor, 8 speeds and a 360° rotatable drill head, suitable for precision drilling in metal and wood.
Why it was chosen: The Holzmann GBM25 400V was selected for its combination of powerful motor performance, precise drilling guidance and solid construction. It represents a professional choice for workshops that require stability and flexibility in drilling work.

The Holzmann GBM25 400V is a stationary bench drill designed for demanding drilling tasks. The machine is equipped with a 400V motor with two stages and a total output of 650/900 W, providing sufficient power for both metal and woodworking.

The drill head can be rotated 360 degrees and adjusted in height, providing great flexibility for different tasks. The vibration-free and robust construction ensures precise results, even during prolonged use.

The machine has eight different speeds, allowing the drilling speed to be adjusted to the material. The table is equipped with T-slots and a T-fence, providing stable clamping of workpieces during operation.

With a maximum drilling capacity of 25 mm and thread cutting up to M10, the GBM25 400V is suitable for both professional and advanced hobby users who want a reliable and powerful drill for workshop use.

  • Powerful motor: 650/900 W two-stage motor with 400V operating voltage.
  • Flexible drilling unit: The drill head can be rotated 360° and adjusted in height.
  • Precision work: Vibration-free construction and solid base for stable drilling.
  • Variable speed: 8 speeds adapted to different materials.
  • Large drilling capacity: Up to 25 mm drilling diameter and thread cutting up to M10.

Pros and cons

  • Robust and vibration-free construction
  • Two-stage motor with high power
  • 360° rotatable and height-adjustable drill head
  • Multiple speed settings for precise control
  • Suitable for both metal and woodworking
  • Requires 400V power supply, which limits use in ordinary households
  • Relatively heavy and stationary – not suitable for mobile use

Pros and cons

Pros

  • Robust and vibration-free construction
  • Two-stage motor with high power
  • 360° rotatable and height-adjustable drill head
  • Multiple speed settings for precise control
  • Suitable for both metal and woodworking

Cons

  • Requires 400V power supply, which limits use in ordinary households
  • Relatively heavy and stationary – not suitable for mobile use

Pros

  • Robust and vibration-free construction
  • Two-stage motor with high power
  • 360° rotatable and height-adjustable drill head
  • Multiple speed settings for precise control
  • Suitable for both metal and woodworking

Cons

  • Requires 400V power supply, which limits use in ordinary households
  • Relatively heavy and stationary – not suitable for mobile use
Pros: The machine has a robust and vibration-free construction, a two-stage motor with high power, a 360° rotatable and height-adjustable drill head as well as multiple speed settings that provide precise control, and it is suitable for both metal and woodworking.
Cons: It requires a 400V power supply, which limits use in ordinary households, and it is relatively heavy and stationary, so it is not suitable for mobile use.
Pros: The machine has a robust and vibration-free construction, a two-stage motor with high power, a 360° rotatable and height-adjustable drill head as well as multiple speed settings that provide precise control, and it is suitable for both metal and woodworking.
Cons: It requires a 400V power supply, which limits use in ordinary households, and it is relatively heavy and stationary, so it is not suitable for mobile use.

Specifications

  • Motor power (S1): 650/900 W
  • Voltage: 400V
  • Reach: 255 mm
  • Table size: 500 × 350 mm
  • Spindle taper: MK3/MT3
  • Maximum drilling capacity: 25 mm
  • Maximum thread size: M10
  • Quill stroke: 120 mm
  • Column diameter: 100 mm
  • Base: 500 × 400 mm
  • T-slot: 14 mm
18
Precision and strength
Optimum Bench Drill OPTIdrill DQ 18
A compact and robust bench drill from Optimum with a precision spindle, adjustable drill table and five-speed range, suitable for workshops and technical environments where accuracy and reliability are important.
Why it was chosen: OPTIdrill DQ 18 was selected as a representative of medium-sized bench drills with high precision and solid construction. It combines user-friendliness, safety and precision mechanics in a compact format, making it relevant for both professionals and advanced hobby users.

Optimum OPTIdrill DQ 18 is a bench drill designed for precision drilling in metal and other hard materials. The machine is equipped with a precision spindle with ball bearings and a high-quality quick-release chuck, ensuring stable operation and accurate results.

The drill table is made of robust material and can both tilt ±45° and rotate 360°, providing flexibility for various drilling tasks. The table has diagonally running T-slots and a circular coolant groove, making it suitable for precision work and efficient cooling.

The machine is powered by a 0.45 kW motor with five speed levels, ranging from 600 to 2400 revolutions per minute. It is equipped with a GATES quality belt for stable power transmission and low vibration during operation.

Safety is prioritised with a separate emergency stop switch and low-voltage control at 24 V DC. The solid column and base plate with T-slots provide the machine with a stable base, while the die-cast aluminium arm with soft-grip handle ensures comfortable operation.

  • Precision spindle: Ball bearings and concentricity accuracy under 0.03 mm.
  • Adjustable drill table: Can tilt ±45° and rotate 360° for flexible machining.
  • Stable construction: Strong column and ribbed base plate with T-slots.
  • Safe operation: Separate emergency stop and 24 V DC safety voltage.
  • Variable speed: Five gear levels from 600 to 2400 revolutions per minute.

Pros and cons

  • High precision and stable operation
  • Flexible drill table with tilt and rotation
  • Solid construction with quality components
  • Safety features with emergency stop and low voltage
  • Suitable for both metal and woodwork
  • Relatively heavy construction of approx. 28.5 kg may require a fixed workspace
  • Manual speed adjustment via pulleys

Pros and cons

Pros

  • High precision and stable operation
  • Flexible drill table with tilt and rotation
  • Solid construction with quality components
  • Safety features with emergency stop and low voltage
  • Suitable for both metal and woodwork

Cons

  • Relatively heavy construction of approx. 28.5 kg may require a fixed workspace
  • Manual speed adjustment via pulleys

Pros

  • High precision and stable operation
  • Flexible drill table with tilt and rotation
  • Solid construction with quality components
  • Safety features with emergency stop and low voltage
  • Suitable for both metal and woodwork

Cons

  • Relatively heavy construction of approx. 28.5 kg may require a fixed workspace
  • Manual speed adjustment via pulleys
Pros: The machine has high precision and stable operation, a flexible drill table with tilt and rotation, a solid construction with quality components as well as safety features such as emergency stop and low voltage, making it suitable for both metal and woodwork.
Cons: The relatively heavy construction of around 28.5 kg requires a fixed workspace, and the speed must be adjusted manually via pulleys.
Pros: The machine has high precision and stable operation, a flexible drill table with tilt and rotation, a solid construction with quality components as well as safety features such as emergency stop and low voltage, making it suitable for both metal and woodwork.
Cons: The relatively heavy construction of around 28.5 kg requires a fixed workspace, and the speed must be adjusted manually via pulleys.

Specifications

  • Manufacturer: Optimum
  • Model: OPTIdrill DQ 18
  • SKU: SM-3191042
  • Column diameter: 60 mm
  • Length: approx. 568 mm
  • Width/depth: approx. 319 mm
  • Height: approx. 849 mm
  • Weight: approx. 28.5 kg
  • Drilling capacity steel (S235JR): 15.9 mm
  • Continuous drilling capacity steel (S235JR): 14 mm
  • Drill table size: 200 × 200 mm
  • T-slot size: 14 mm (2 pcs., diagonal type)
  • Rotation: 360°
  • Angle: ±45°
  • Load capacity: 12 kg
  • Max. distance spindle – drill table: 319 mm
  • Drive motor power: 0.45 kW
  • Supply voltage: 230 V
  • Mains frequency: 50 Hz
  • Max. distance spindle – machine base: 518 mm
  • Speed range: 600–2400 min⁻¹ (5 steps)
  • Spindle chuck: MK 2
  • Stroke length: 65 mm
  • Reach: 127 mm
19
Precision in cast iron
Axminster Professional Bench Drill AP340PD
A professional bench drill from Axminster Professional with a cast iron construction, 12 belt speeds and a 550 W induction motor, combining strength, stability and accuracy in a compact format.
Why it was chosen: The AP340PD was selected as an example of a robust and precision-oriented bench drill for professional and educational use. It represents a balanced combination of performance, build quality and user-friendliness in the mid-range.

The Axminster Professional AP340PD is a compact bench drill that combines many of the features of larger models in a more space-saving design. It is constructed from cast iron to ensure stability and vibration damping during use.

The machine is powered by a 550 W induction motor that provides smooth operation and low noise levels. It offers 12 belt speeds from 210 to 2,580 revolutions per minute, making it suitable for various drilling tasks in both wood and metal.

The chuck is keyless and spans from 1 to 16 mm, mounted on a 2MT spindle. The table can be height-adjusted via rack and pinion and can be swung away so that the machine base can be used as a work support.

Safety is prioritised with an electrically lockable chuck guard, safety switch on the belt cover and an emergency stop function on the on/off switch. An integrated LED work light provides better visibility during operation.

The machine is suitable for professional workshops, educational institutions and users who want a precise and solid drill for stationary use.

  • Cast iron construction: Provides high stability and reduces vibrations.
  • 12 belt speeds: From 210 to 2,580 rpm for flexible drilling control.
  • Keyless chuck: 1–16 mm capacity mounted on 2MT spindle.
  • Safety switches: Prevent operation with open belt cover and protect the user.
  • LED work light: Improves visibility during precision work.
  • Adjustable table: Height adjustment via rack and pinion, can be swung away for larger workpieces.

Pros and cons

  • Solid and vibration-damping cast iron construction
  • Wide speed range with 12 steps
  • Keyless chuck for quick tool changes
  • Built-in LED light and emergency stop for increased safety
  • Suitable for both professional and educational environments
  • Relatively heavy construction at 63 kg requires fixed placement
  • Not suitable for use with mortising attachments
  • Supplied with UK plug, which may require an adapter

Pros and cons

Pros

  • Solid and vibration-damping cast iron construction
  • Wide speed range with 12 steps
  • Keyless chuck for quick tool changes
  • Built-in LED light and emergency stop for increased safety
  • Suitable for both professional and educational environments

Cons

  • Relatively heavy construction at 63 kg requires fixed placement
  • Not suitable for use with mortising attachments
  • Supplied with UK plug, which may require an adapter

Pros

  • Solid and vibration-damping cast iron construction
  • Wide speed range with 12 steps
  • Keyless chuck for quick tool changes
  • Built-in LED light and emergency stop for increased safety
  • Suitable for both professional and educational environments

Cons

  • Relatively heavy construction at 63 kg requires fixed placement
  • Not suitable for use with mortising attachments
  • Supplied with UK plug, which may require an adapter
Pros: The machine has a solid and vibration-damping cast iron construction, a wide speed range with 12 steps, a keyless chuck for quick tool changes, as well as built-in LED light and emergency stop for increased safety, making it suitable for both professional and educational environments.
Cons: The relatively heavy construction at 63 kg requires a fixed placement, it is not suitable for use with mortising attachments, and it is supplied with a UK plug, which may require an adapter.
Pros: The machine has a solid and vibration-damping cast iron construction, a wide speed range with 12 steps, a keyless chuck for quick tool changes, as well as built-in LED light and emergency stop for increased safety, making it suitable for both professional and educational environments.
Cons: The relatively heavy construction at 63 kg requires a fixed placement, it is not suitable for use with mortising attachments, and it is supplied with a UK plug, which may require an adapter.

Specifications

  • Model: AP340PD
  • Item number (SKU): AX107704
  • Spindle distance: 420 mm x 250 mm
  • Chuck: 1–16 mm keyless
  • Column diameter: 70 mm
  • Max. distance from chuck to spindle: 530 mm
  • Max. distance from chuck to table: 340 mm
  • Max. drilling capacity in mild steel: 16 mm
  • Morse taper: 2 MT
  • Spindle taper: 2 MT
  • Power: 550 W induction motor
  • Speed: 210–2,580 rpm (12 steps)
  • Table size: 260 mm x 260 mm
  • Table tilt: 45° – 0° – 45°
  • Throat depth: 165 mm
  • Voltage: 230 V
  • Weight: 63 kg
  • Dimensions (L x W x H): 640 x 370 x 1,000 mm
  • Plug type: UK plug with 3 pins
  • User level: Retail/professional use
20
Precision and strength
PROMAC Drill Press JDT-2512V
A solid drill press from PROMAC with variable speed, cast iron construction and high drilling capacity, suitable for precision work in metal and other hard materials.
Why it was chosen: The PROMAC JDT-2512V was selected for its combination of robust construction, precision and flexibility in drilling speed. It represents a professional choice for workshops that require stability and accuracy when drilling in metal.

The PROMAC Drill Press JDT-2512V is a stationary machine designed for precision drilling in metal and other hard materials. It is built in cast iron, which provides high stability and reduces vibrations during operation.

The machine has a drilling capacity of up to 23 mm in mild steel and a spindle speed that can be continuously adjusted in the range of 100–2100 revolutions per minute. This makes it possible to adapt the speed to different materials and drilling tasks.

The worktable can be tilted ±45° and has a weight capacity of 60 kg, providing flexibility for angled drilling. The table and base are made of cast iron to ensure a solid working surface.

With a spindle travel of 100 mm, a column diameter of 70 mm and a total height of 1040 mm, the machine is suitable for both small and medium-sized workpieces. It is equipped with an MT-2 spindle taper and a B16 drill chuck with a capacity from 1–16 mm.

  • Variable speed: Adjustable spindle speed from 100 to 2100 rpm.
  • Stable construction: Cast iron in head, table and base for maximum stability.
  • Large drilling capacity: Up to 23 mm in mild steel.
  • Flexible worktable: Can be tilted ±45° and carry up to 60 kg.
  • Precision spindle: MT-2 taper and 100 mm spindle travel for accurate drilling.

Pros and cons

  • Robust and vibration-damping cast iron construction
  • Variable speed adapted to different materials
  • Large drilling capacity and precise spindle guidance
  • Flexible worktable with tilt function
  • Relatively high weight of 91 kg may limit mobility
  • Requires a fixed workspace and correct setup for optimal use

Pros and cons

Pros

  • Robust and vibration-damping cast iron construction
  • Variable speed adapted to different materials
  • Large drilling capacity and precise spindle guidance
  • Flexible worktable with tilt function

Cons

  • Relatively high weight of 91 kg may limit mobility
  • Requires a fixed workspace and correct setup for optimal use

Pros

  • Robust and vibration-damping cast iron construction
  • Variable speed adapted to different materials
  • Large drilling capacity and precise spindle guidance
  • Flexible worktable with tilt function

Cons

  • Relatively high weight of 91 kg may limit mobility
  • Requires a fixed workspace and correct setup for optimal use
Pros: The machine has a robust and vibration-damping cast iron construction, variable speed adapted to different materials, large drilling capacity with precise spindle guidance, as well as a flexible worktable with tilt function.
Cons: The relatively high weight of 91 kg may limit mobility, and it requires a fixed workspace and correct setup to function optimally.
Pros: The machine has a robust and vibration-damping cast iron construction, variable speed adapted to different materials, large drilling capacity with precise spindle guidance, as well as a flexible worktable with tilt function.
Cons: The relatively high weight of 91 kg may limit mobility, and it requires a fixed workspace and correct setup to function optimally.

Specifications

  • Model: JDT-2512V
  • Drilling capacity (mild steel): 23 mm
  • Tapping capacity (mild steel): M14
  • Chuck size: B16 (1–16 mm)
  • Spindle travel: 100 mm
  • Distance chuck to base: 500 mm
  • Distance chuck to table (max.): 255 mm
  • Table size: 246 × 278 mm
  • Table travel: 224 mm
  • Table tilt: ±45°
  • Table weight capacity: 60 kg
  • Head travel: 345 mm
  • Spindle taper: MT-2
  • Column diameter: Ø70 mm
  • Spindle speed range: 100–2100 rpm
  • Pulley material: Cast iron
  • Base size: 340 × 520 mm
  • Base working area: 258 × 275 mm
  • Material (table, base, head): Cast iron
  • Spindle distance to column: 203 mm
  • Overall dimensions (L×W×H): 690 × 410 × 1040 mm
  • Net weight: 91 kg
21
Precision and strength
Holzmann Drill Press SB4115N 230V
A compact and robust drill press from Holzmann with aluminium motor, swivelling worktable and precise depth scale – suitable for precision drilling in the workshop.
Why it was chosen: The Holzmann SB4115N 230V was selected for its combination of stability, user-friendliness and solid construction. It represents a classic choice for users who want a reliable drill press for hobby or workshop use.

The Holzmann SB4115N 230V is a stable drill press designed for precision work in wood and metal. The machine is built with a solid and brushed column that ensures stability during drilling, and it has a worktable that can tilt 45 degrees to each side and rotate 360 degrees for flexible positioning.

The motor is made of aluminium and has IP54 protection, providing a robust and reliable construction. A transparent cover protects the drill chuck, while the handle with integrated depth scale makes it possible to drill with high precision.

The machine comes with a self-tightening drill chuck and has a maximum drilling capacity of 16 mm. The variable spindle speed ranges from 200 to 2500 revolutions per minute, making it suitable for various materials and drilling tasks.

With a net weight of 30 kg and compact dimensions, the SB4115N 230V is a practical solution for both smaller workshops and hobby users who want a stable and versatile drill press.

  • Solid construction: Brushed column and stable base ensure precise drilling operations.
  • Swivelling worktable: Can tilt +45°/-45° and rotate 360° for flexible use.
  • Aluminium motor IP54: Provides reliability and protection against dust and moisture.
  • Precise depth scale: Handle with integrated measuring scale for accurate drilling.
  • Variable speed: 12 steps from 200 to 2500 revolutions per minute.

Pros and cons

  • Robust and stable construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Precise depth scale for controlled drilling
  • Suitable for both wood and metal
  • Relatively heavy compared to smaller hobby drill presses
  • Requires a fixed workspace due to weight and size

Pros and cons

Pros

  • Robust and stable construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Precise depth scale for controlled drilling
  • Suitable for both wood and metal

Cons

  • Relatively heavy compared to smaller hobby drill presses
  • Requires a fixed workspace due to weight and size

Pros

  • Robust and stable construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Precise depth scale for controlled drilling
  • Suitable for both wood and metal

Cons

  • Relatively heavy compared to smaller hobby drill presses
  • Requires a fixed workspace due to weight and size
Pros: The machine has a robust and stable construction, a flexible worktable with tilt and rotation function, a self-tightening drill chuck, a precise depth scale for controlled drilling and is suitable for both wood and metal.
Cons: It is relatively heavy compared to smaller hobby drill presses and requires a fixed workspace due to its weight and size.
Pros: The machine has a robust and stable construction, a flexible worktable with tilt and rotation function, a self-tightening drill chuck, a precise depth scale for controlled drilling and is suitable for both wood and metal.
Cons: It is relatively heavy compared to smaller hobby drill presses and requires a fixed workspace due to its weight and size.

Specifications

  • Model: SB4115N-230V
  • Motor power S1/S6: 400 W / 600 W
  • Voltage: 230 V
  • Table dimensions: 200 × 200 mm
  • Maximum height: 850 mm
  • Distance from drill chuck to column: 127 mm
  • Machine dimensions (without long table): 550 × 370 × 550 mm
  • Maximum travel: 60 mm
  • Base plate: 350 × 210 mm
  • Maximum drilling capacity: 16 mm
  • Spindle speed: 12 steps, 200–2500 min⁻¹
  • Distance from spindle to base plate: 525 mm
  • Distance between spindle and table: 360 mm
  • Net weight: 30 kg
  • Package dimensions (L×W×H): 690 × 430 × 260 mm
22
Precision and strength
Holzmann Drill Press SB4116HM 400V
A robust drill press from Holzmann with a powerful motor, stainless steel column and adjustable worktable that can be tilted and rotated for flexible drilling.
Why it was chosen: The SB4116HM 400V was selected as an example of a solid and versatile mid-range drill press that combines precision, stability and user-friendliness for both workshops and hobby users.

The Holzmann SB4116HM 400V is a stable drill press designed for precision work. It has a solid and polished base with T-slots that provide a secure foundation during drilling.

The machine is powered by an aluminium motor with IP54 protection, making it resistant to dust and moisture. The column is made of stainless, polished steel, contributing to both strength and durability.

The worktable can be tilted from -45° to +45° and rotated 360° around its centre, providing great flexibility for various drilling tasks. A protective cover around the spindle increases safety during use.

The delivery scope includes a self-tightening drill chuck (3–16 mm, B16), so the machine is ready for use upon delivery.

  • Powerful motor: 600 W (S1) / 900 W (S6) with 400 V operating voltage.
  • Flexible worktable: Can be tilted from -45° to +45° and rotated 360°.
  • Robust construction: Stainless steel column and solid base with T-slots.
  • Safety: Protective cover around the spindle.
  • Precision: Maximum drilling capacity of 16 mm and 12 speed levels from 180 to 2740 revolutions per minute.

Pros and cons

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable for flexible drilling
  • Powerful motor with multiple speed levels
  • Comes with self-tightening drill chuck
  • Requires 400 V power supply, which is not available in all workshops
  • The weight of 50 kg makes it less mobile

Pros and cons

Pros

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable for flexible drilling
  • Powerful motor with multiple speed levels
  • Comes with self-tightening drill chuck

Cons

  • Requires 400 V power supply, which is not available in all workshops
  • The weight of 50 kg makes it less mobile

Pros

  • Stable and robust stainless steel construction
  • Adjustable and rotatable worktable for flexible drilling
  • Powerful motor with multiple speed levels
  • Comes with self-tightening drill chuck

Cons

  • Requires 400 V power supply, which is not available in all workshops
  • The weight of 50 kg makes it less mobile
Pros: The machine has a stable and robust stainless steel construction, an adjustable and rotatable worktable for flexible drilling, a powerful motor with multiple speed levels and also comes with a self-tightening drill chuck.
Cons: It requires a 400 V power supply, which is not available in all workshops, and the weight of 50 kg makes it less mobile.
Pros: The machine has a stable and robust stainless steel construction, an adjustable and rotatable worktable for flexible drilling, a powerful motor with multiple speed levels and also comes with a self-tightening drill chuck.
Cons: It requires a 400 V power supply, which is not available in all workshops, and the weight of 50 kg makes it less mobile.

Specifications

  • Model: SB4116HM-400V
  • Motor power (S1/S6): 600 W / 900 W
  • Voltage: 400 V
  • Table dimensions: 250 × 250 mm
  • Maximum height: 1060 mm
  • Distance from chuck to column: 170 mm
  • Maximum travel: 80 mm
  • Base plate: 270 × 450 mm
  • Maximum drilling capacity: 16 mm
  • Spindle speed: 12 steps, 180–2740 min⁻¹
  • Distance from spindle to base plate: 695 mm
  • Maximum distance between spindle and table: 495 mm
  • Net weight: 50 kg
  • Package dimensions (L×W×H): 895 × 490 × 290 mm
  • Scope of delivery: Self-tightening drill chuck 3–16 mm, B16
23
Precision and strength
Holzmann Drill Press SB4115N 400V
A robust drill press from Holzmann with a solid column, aluminium motor and adjustable worktable that provides precise and stable drilling for both hobby and workshop use.
Why it was chosen: The Holzmann SB4115N 400V was selected as an example of a compact yet powerful drill press with good build quality and flexible adjustment options. It represents a solid choice for users who want a stable machine for precision work in metal or wood.

The Holzmann SB4115N 400V is a stationary drill press designed to deliver stable and accurate drilling. The machine is built with a solid and brushed column that ensures rigidity during operation, and an aluminium motor with IP54 protection that contributes to reliability and long service life.

The worktable can rotate 360 degrees and tilt from +45 to -45 degrees, providing flexibility when drilling at different angles. An integrated depth scale on the handle makes it possible to control the drilling depth precisely.

The machine comes with a self-tightening drill chuck and has a maximum drilling capacity of 16 mm. The spindle speed can be adjusted in 12 steps from 200 to 2500 revolutions per minute, allowing it to be adapted to different materials and drilling tasks.

With a maximum height of 850 mm and a net weight of 30 kg, the SB4115N 400V is a compact yet stable machine that is well suited for both smaller workshops and hobby users who want precision and reliability in their drilling work.

  • Solid construction: Strong column and base ensure stability during drilling.
  • Adjustable worktable: Can rotate 360° and tilt ±45° for flexible use.
  • Aluminium motor IP54: Provides reliability and protection against dust and moisture.
  • Depth scale: Enables precise depth control when drilling.
  • Variable speed: 12 steps from 200 to 2500 revolutions per minute.

Pros and cons

  • Stable and robust construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Option for precise depth control
  • Suitable for both metal and woodwork
  • Relatively heavy for transport and moving
  • Requires a fixed workspace for optimal stability

Pros and cons

Pros

  • Stable and robust construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Option for precise depth control
  • Suitable for both metal and woodwork

Cons

  • Relatively heavy for transport and moving
  • Requires a fixed workspace for optimal stability

Pros

  • Stable and robust construction
  • Flexible worktable with tilt and rotation function
  • Self-tightening drill chuck included
  • Option for precise depth control
  • Suitable for both metal and woodwork

Cons

  • Relatively heavy for transport and moving
  • Requires a fixed workspace for optimal stability
Pros: The machine has a stable and robust construction, a flexible worktable with tilt and rotation function, a self-tightening drill chuck, the option for precise depth control and is suitable for both metal and woodwork.
Cons: It is relatively heavy to transport and move, and therefore requires a fixed workspace to achieve optimal stability.
Pros: The machine has a stable and robust construction, a flexible worktable with tilt and rotation function, a self-tightening drill chuck, the option for precise depth control and is suitable for both metal and woodwork.
Cons: It is relatively heavy to transport and move, and therefore requires a fixed workspace to achieve optimal stability.

Specifications

  • Model: SB4115N 400V
  • Motor power S1 / S6: 400 W / 600 W
  • Voltage: 230 V
  • Table dimensions: 193 × 200 mm
  • Maximum height: 850 mm
  • Distance from chuck to column: 127 mm
  • Maximum travel: 60 mm
  • Base plate: 350 × 210 mm
  • Maximum drilling capacity: 16 mm
  • Spindle speed: 12 steps, 200–2500 min⁻¹
  • Distance from spindle to base plate: 525 mm
  • Maximum distance between spindle and table: 360 mm
  • Net weight: 30 kg
  • Package dimensions (L × W × H): 690 × 430 × 260 mm
  • Scope of delivery: Self-tightening drill chuck
24
Professional precision drilling
Holzmann Bench Drill GBM25T 400V
A robust bench drill from Holzmann with a 400V motor, 8 speeds and a 360° rotatable drill head, designed for precision drilling in metal and wood.
Why it was chosen: The GBM25T 400V was selected for its combination of powerful motor performance, precise drilling control and solid construction. It represents a professional choice for workshops that require stability and flexibility in drilling work.

The Holzmann GBM25T 400V is a stationary bench drill designed for demanding drilling tasks. The machine is equipped with gears that allow the user to control drilling with high precision and adjust the speed according to the material.

The solid and vibration-free construction ensures stable operation, while the integrated T-fence in the table provides good support during work. The drill head can be rotated 360 degrees and adjusted in height, making the machine flexible in use.

The GBM25T has eight different speeds and two powerful motor levels, making it suitable for both fine drilling and more demanding tasks. The combination of robust design and adjustable features makes it a versatile tool in both professional and semi-professional workshops.

  • Powerful motor: 650/900 W motor with 400V operation ensures high performance.
  • Precise drilling control: Gear system and 8 speeds provide flexibility in work.
  • 360° rotatable drill head: Makes it possible to drill from multiple angles.
  • Solid construction: Vibration-free and robust build for stable operation.
  • Adjustable table: Table with T-fence and adjustable height for precise positioning.

Pros and cons

  • Powerful and stable construction
  • Option for precise speed adjustment
  • Rotatable and height-adjustable drill head
  • Suitable for both metal and woodwork
  • Requires 400V power supply
  • Relatively heavy and stationary – not suitable for mobile use

Pros and cons

Pros

  • Powerful and stable construction
  • Option for precise speed adjustment
  • Rotatable and height-adjustable drill head
  • Suitable for both metal and woodwork

Cons

  • Requires 400V power supply
  • Relatively heavy and stationary – not suitable for mobile use

Pros

  • Powerful and stable construction
  • Option for precise speed adjustment
  • Rotatable and height-adjustable drill head
  • Suitable for both metal and woodwork

Cons

  • Requires 400V power supply
  • Relatively heavy and stationary – not suitable for mobile use
Pros: The machine has a powerful and stable construction, allows precise speed adjustment, has a rotatable and height-adjustable drill head and is suitable for both metal and woodwork.
Cons: It requires a 400V power supply and is relatively heavy and stationary, making it unsuitable for mobile use.
Pros: The machine has a powerful and stable construction, allows precise speed adjustment, has a rotatable and height-adjustable drill head and is suitable for both metal and woodwork.
Cons: It requires a 400V power supply and is relatively heavy and stationary, making it unsuitable for mobile use.

Specifications

  • Motor power (S1): 650/900 W
  • Voltage: 400V
  • Reach: 255 mm
  • Table size: 250 × 290 mm
  • Taper: MK3/MT3
  • Max. drilling capacity: 25 mm
  • Max. thread size: M10
  • Quill stroke: 120 mm
  • Speed range: 105–2900 min⁻¹
  • Column diameter: 100 mm
  • Base: 570 × 340 mm
  • T-slot: 14 mm
DIY building projects for the whole family
Inspire the whole family with fun build-it-yourself projects ranging from simple bookcases to play sheds. This e-book contains step-by-step instructions and tips on how to involve the children in the building process.
Open the e-book now
Find inspiration among many types of hammers
The right tool makes the job easier and the result better
Gear
Gear
Hammer
Tool
Carpentry
DIY
Home improvement
7 min
Hammers come in many varieties for different types of carpentry work. Get an overview of the most common models and their uses, so you can choose the hammer that best suits your projects.
Orson Miller
Orson
Miller
Bench Drills – an informative overview for those who want to familiarise themselves
Gain control over the precision in your workshop with the right drilling tool
Gear
Gear
Bench drill
Tool
Woodworking
Workshop
Construction projects
7 min
Get an overview of bench drills and their key features. The article helps you understand differences in size, power, and use, so you can choose the machine that best suits your workshop.
Joseph Richards
Joseph
Richards
Different circular saws at a glance
Find the circular saw that suits your next construction project
Gear
Gear
Circular saw
Carpentry
Tool
Construction
DIY
6 min
Circular saws make it easy to cut precise cuts in wood and other materials. In this article, you get an overview of different types of circular saws, their functions and possible applications for both small and large construction projects.
Scarlett Baker
Scarlett
Baker
Mitre saws – an overview of tools for precise and clean cuts
Get control of the angles when you need to make accurate joints in wood and mouldings
Gear
Gear
Mitre saw
Woodworking
Tool
DIY
Precision work
4 min
Mitre saws make it possible to cut precise angles and clean cuts in wood and other materials. Get an overview of different types and functions so you can choose the model that best suits your project.
Archie Morris
Archie
Morris
Different ways to store tools – see the selection of toolboxes
Keep track of your tools with the right storage solution
Gear
Gear
Toolbox
Storage
Handicraft
DIY
Construction projects
2 min
Get an overview of different ways to store tools. The article presents a selection of toolboxes in various sizes and materials, so you can find the solution that best suits your needs.
Luke King
Luke
King
Different bolt cutters and their practical features
Efficient tool for precise cutting of bolts, chains and reinforcement bars
New
New
Bolt cutter
Hand tool
Construction
DIY
Metalworking
3 min
Bolt cutters come in many sizes and types, from compact models to heavy-duty versions for tough work. Get an overview of their features and areas of use so you can choose the right one for your construction project.
Orson Miller
Orson
Miller
Floor drains – variations in form, function and expression
Create a functional and aesthetic bathroom with the right floor drain
New
New
Floor drain
Bathroom
HVAC
Drainage system
Home renovation
7 min
Floor drains come in many shapes and materials, from classic round models to modern linear drains. The article provides an overview of functions, design and maintenance so that you can choose the drain that best suits your bathroom.
Joseph Richards
Joseph
Richards
Get an overview of heat pumps before you choose
Find the right solution for efficient and sustainable heating of your home
New
New
Heat pumps
Heating
Energy solutions
Home
Climate
6 min
Get a complete overview of different types of heat pumps, their functions and advantages. The article helps you understand which solutions best suit your home, your energy consumption and your budget.
Scarlett Baker
Scarlett
Baker
Paint sprayers – understand the differences before you decide
Get an even and professional result in less time
New
New
Paint sprayer
Painting
DIY
Home
Painting equipment
6 min
Paint sprayers make it easy to paint large surfaces quickly and with a professional result. Read about the differences between the most common types, and find out which one suits your next painting project best.
Archie Morris
Archie
Morris
