Router tables presented in a simple and clear overview

1

Precision and strength

A robust table router from Holzmann with cast iron table, aluminium extension and four speeds that provide precise routing and stable operation for demanding woodworking.

Why it was chosen: The FS200SF has been selected as an example of a professional table router with high motor power, adjustable spindle and solid construction, suitable for both workshops and advanced hobby users.

The Holzmann FS200SF is a 400V table router designed for precision woodwork. It combines a massive cast iron table with a smooth aluminium table and a table extension, providing a large and stable work surface.

The machine has four speeds that can be changed via a front door, making it easy to adjust the routing speed to different materials and tools. The spindle can tilt backwards up to 45°, and there is the option for both clockwise and counterclockwise rotation.

A high-quality aluminium fence and hold-down ensure precise guidance of the workpiece during operation. The speed can be read directly on a digital display, contributing to accurate control.

Delivery includes angle stop, cutter head and hold-down, so the machine can be put into use immediately for a wide range of routing tasks.

Solid work surface: Cast iron table combined with smooth aluminium extension for stability and space.
Variable speed: Four speeds with easy access via front door.
Adjustable spindle: Can tilt backwards up to 45° for flexible machining.
Digital readout: Speed displayed on digital display for precise control.
Quality fence: Aluminium fence and hold-down ensure precise results.

Pros and cons

Powerful motor up to 3750 W (S6)
Large and stable work surface in cast iron and aluminium
Four speeds adapted for different routing tasks
Possibility of spindle tilt up to 45°
Digital speed display
Requires 400V power supply, which limits use in standard household installations
The machine’s weight of approximately 260 kg makes it less mobile

Pros and cons

Pros

Powerful motor up to 3750 W (S6)
Large and stable work surface in cast iron and aluminium
Four speeds adapted for different routing tasks
Possibility of spindle tilt up to 45°
Digital speed display

Cons

Requires 400V power supply, which limits use in standard household installations
The machine’s weight of approximately 260 kg makes it less mobile

Pros

Powerful motor up to 3750 W (S6)
Large and stable work surface in cast iron and aluminium
Four speeds adapted for different routing tasks
Possibility of spindle tilt up to 45°
Digital speed display

Cons

Requires 400V power supply, which limits use in standard household installations
The machine’s weight of approximately 260 kg makes it less mobile

Pros: The machine has a powerful motor of up to 3750 W (S6), a large and stable work surface in cast iron and aluminium, four speeds adapted for different routing tasks, possibility of spindle tilt up to 45°, and digital speed display.

Cons: It requires a 400V power supply, which limits use in standard household installations, and its weight of approximately 260 kg makes it less mobile.

Pros: The machine has a powerful motor of up to 3750 W (S6), a large and stable work surface in cast iron and aluminium, four speeds adapted for different routing tasks, possibility of spindle tilt up to 45°, and digital speed display.

Cons: It requires a 400V power supply, which limits use in standard household installations, and its weight of approximately 260 kg makes it less mobile.

Specifications

Motor power S1 / S6: 2800 W / 3750 W
Voltage: 400 V
Table size: 1000 x 360 mm
Table size (aluminium table): 1000 x 250 mm
Table height: 900 mm
Extraction port: 100 mm
Max. tool diameter above table: 180 mm
Max. tool diameter below table: 180 mm
Max. clamping height: 100 mm
Spindle length: 100 mm
Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Spindle diameter: 30 mm
Table opening: 200 mm
Fence: 360 x 120 mm
Weight: approx. 260 kg
Model: FS200SF-400V
Manufacturer: Holzmann

See details

2

Precision and strength

Axminster Professional AP200SM Table Spindle Moulder 230

A robust spindle moulder with a cast iron table, four speeds and a tilting function that provides high precision and flexibility for professional woodworking.

Why it was chosen: The AP200SM was selected for its combination of solid construction, adjustable features and powerful motor. It represents a professional tool for users who require accuracy and stability in woodworking.

The Axminster Professional AP200SM Table Spindle Moulder 230 is designed for precision woodworking and combines strength, stability and flexibility. The ground cast iron table provides a flat and vibration-free surface that ensures accurate results during milling.

The machine is powered by a 2.8 kW single-phase motor that delivers ample power for demanding tasks. The user can choose between four spindle speeds from 1,800 to 9,000 revolutions per minute, allowing the speed to be adjusted to different tools and materials. A digital readout shows the current speed for precise control.

The spindle has a diameter of 30 mm and can tilt from +5° to -45°, enabling advanced milling tasks. A stop setting at 0° makes it easy to return to the vertical position. The machine is equipped with two 100 mm extraction ports – one at the spindle head and one in the base – for efficient removal of chips and dust.

As standard, the AP200SM comes with a sliding table with mitre fence and clamping device that supports precision work. In addition, optional accessories such as a tenoning table and sliding carriage can be purchased for greater flexibility when machining larger workpieces.

The machine requires a 16 amp power supply and is recommended for use with a type C circuit breaker. It is suitable for both professional workshops and experienced users who want a stable and versatile spindle moulder.

Powerful motor: 2.8 kW single-phase motor delivers high performance for demanding tasks.
Four speeds: Adjustable spindle speeds from 1,800 to 9,000 rpm with digital display.
Tilting function: The spindle can be adjusted from +5° to -45° for flexible milling.
Efficient extraction: Two 100 mm extraction ports keep the work area clean.
Solid construction: Ground cast iron table ensures stability and precision.
Included sliding table: Includes mitre fence and clamping device for precision work.

Pros and cons

Robust and vibration-free cast iron construction
Four adjustable speeds with digital readout
Tilting function for flexible milling
Efficient dust and chip extraction via dual ports
Suitable for professional and advanced use
Requires 16A power supply and correct electrical installation
Relatively heavy machine at over 200 kg, which limits mobility
Optional accessories such as tenoning table and sliding carriage must be purchased separately

Pros and cons

Pros

Robust and vibration-free cast iron construction
Four adjustable speeds with digital readout
Tilting function for flexible milling
Efficient dust and chip extraction via dual ports
Suitable for professional and advanced use

Cons

Requires 16A power supply and correct electrical installation
Relatively heavy machine at over 200 kg, which limits mobility
Optional accessories such as tenoning table and sliding carriage must be purchased separately

Pros

Robust and vibration-free cast iron construction
Four adjustable speeds with digital readout
Tilting function for flexible milling
Efficient dust and chip extraction via dual ports
Suitable for professional and advanced use

Cons

Requires 16A power supply and correct electrical installation
Relatively heavy machine at over 200 kg, which limits mobility
Optional accessories such as tenoning table and sliding carriage must be purchased separately

Pros: The machine has a robust and vibration-free cast iron construction, offers four adjustable speeds with digital readout, has a tilting function for flexible milling, ensures efficient dust and chip extraction via dual ports, and is suitable for both professional and advanced use.

Cons: It requires a 16A power supply and correct electrical installation, is relatively heavy with a weight of over 200 kg, which limits mobility, and in addition, optional accessories such as tenoning table and sliding carriage must be purchased separately.

Pros: The machine has a robust and vibration-free cast iron construction, offers four adjustable speeds with digital readout, has a tilting function for flexible milling, ensures efficient dust and chip extraction via dual ports, and is suitable for both professional and advanced use.

Cons: It requires a 16A power supply and correct electrical installation, is relatively heavy with a weight of over 200 kg, which limits mobility, and in addition, optional accessories such as tenoning table and sliding carriage must be purchased separately.

Specifications

Model: AP200SM
Item number (SKU): AX107703
Voltage: 230 V
Power: 2.8 kW
Spindle diameter: 30 mm
Spindle speeds: 1,800, 3,000, 6,000 and 9,000 rpm
Spindle tilt: +5° to -45°
Spindle travel: 100 mm
Max spindle projection above table: 100 mm
Max tool diameter above table: 200 mm
Max tool diameter below table: 180 mm
Extraction ports: 2 x 100 mm
Required extraction airflow: 1,000 m³/hour
Table size: 1,000 mm x 360 mm
Table height: 900 mm
Dimensions (L x W x H): 1,010 x 690 x 900 mm
Weight: 218 kg
Sound pressure level: 77.1 dB(A)
Plug type: UK 16A plug with 3 pins
User level: Detail/professional use

See details

3

Precision in wood

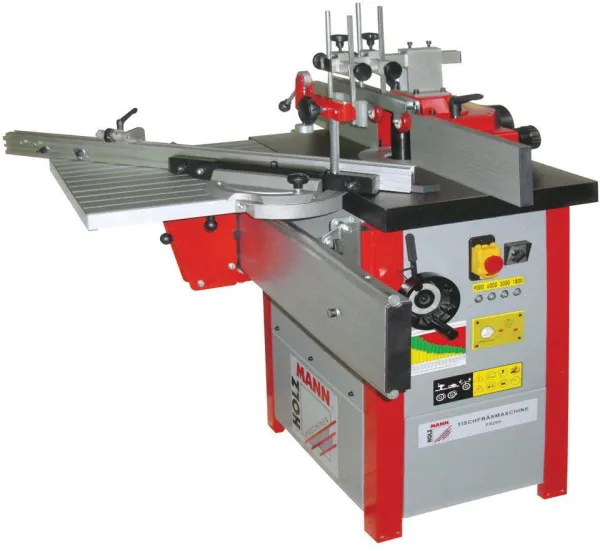

Holzmann Table Router - FS200 - 400V

A robust table router from Holzmann with a cast iron table, electronic LED speed display and adjustable fence providing precise control during woodworking.

Why it was chosen: The FS200 model from Holzmann was selected for its combination of solid construction, flexible speeds and user-friendly adjustment options. It represents a professional tool for both workshops and experienced hobby users seeking stability and precision.

The Holzmann FS200 is a table router designed for accurate and stable routing of wooden workpieces. The machine is equipped with a robust cast iron table that ensures vibration-free operation and precise results during work.

The fence is made of high quality and features both a hold-down system and fine adjustment, making it possible to work safely and with high precision. The electronic LED speed display provides a clear overview of the spindle speed.

The machine offers four standard speeds so that the user can adapt the routing to different materials and tool sizes. The spindle height is easily adjusted via a handwheel, and accessories such as a cutter head, aluminium fence, hold-downs and sanding set are included.

The FS200 can also be expanded with a roller table as optional equipment, increasing flexibility when processing larger workpieces.

Cast iron table: Provides stability and reduces vibrations during work.
LED speed display: Clearly shows the current spindle speed.
Four speeds: Allows adaptation to different routing tasks.
Precise fence: With hold-down system and fine adjustment for exact results.
Expansion option: Roller table can be purchased and retrofitted.

Pros and cons

Solid cast iron construction
Electronic speed display
Multiple speed settings
Precise and adjustable fence
Option to expand with roller table
Requires 400V power supply
Relatively heavy machine, which may limit mobility

Pros and cons

Pros

Solid cast iron construction
Electronic speed display
Multiple speed settings
Precise and adjustable fence
Option to expand with roller table

Cons

Requires 400V power supply
Relatively heavy machine, which may limit mobility

Pros

Solid cast iron construction
Electronic speed display
Multiple speed settings
Precise and adjustable fence
Option to expand with roller table

Cons

Requires 400V power supply
Relatively heavy machine, which may limit mobility

Pros: The machine has a solid cast iron construction, electronic speed display, multiple speed settings, a precise and adjustable fence, and the option to expand with a roller table.

Cons: It requires a 400V power supply and is relatively heavy, which may limit mobility.

Pros: The machine has a solid cast iron construction, electronic speed display, multiple speed settings, a precise and adjustable fence, and the option to expand with a roller table.

Cons: It requires a 400V power supply and is relatively heavy, which may limit mobility.

Specifications

Model: FS200-400V
Motor power (S1/S6): 2800 W / 3750 W
Voltage: 400 V
Table size: 690 × 480 mm
Table height: 900 mm
Extraction port: 100 mm
Max. cutter diameter: 200 mm
Max. tool diameter above table: 190 mm
Max. tool diameter below table: 190 mm
Max. clamping height: 105 mm
Spindle length: 100 mm
Spindle diameter: 30 mm
Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Table opening: 200 mm
Fence: 360 × 120 mm
Weight: 155 kg

See details

4

Precision in wood

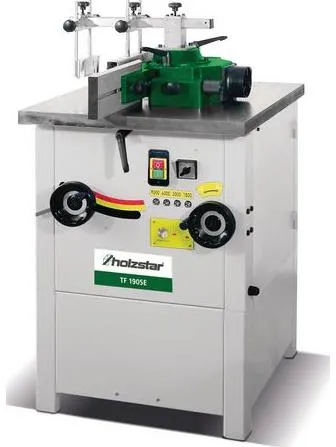

Holzstar Table Router 400V TF 190SE

A powerful table router from Holzstar with a solid cast iron table, adjustable milling unit and LED speed display. The machine is designed for precise milling work and flexible use in workshops.

Why it was chosen: The Holzstar TF 190SE was selected for its combination of robust construction, adjustable milling unit and user-friendly speed control. It represents a professional solution for woodworking where stability and precision are crucial.

The Holzstar TF 190SE is a stationary table router designed for precise milling work in wood. It is equipped with a solid grey cast iron table that provides a stable and vibration-free working surface, contributing to precise results.

The machine has a milling unit made of grey cast iron that can be tilted from +5° to -30°, providing flexibility for different milling tasks. The milling spindle can rotate both clockwise and counterclockwise, and the speed is easily adjusted via belt change. The current speed is clearly displayed with LED light on the front.

A hold-down device helps to guide the workpiece safely during operation, and sliding table and chassis device can be purchased as optional accessories. The combination of a powerful motor and solid construction makes the machine suitable for both professional and demanding hobby users.

Solid construction: Cast iron table and milling unit ensure stability and precision.
Adjustable milling unit: Can be tilted from +5° to -30° for flexible machining.
LED speed display: Provides clear information about the selected speed.
Powerful motor: 2.2 kW drive motor with four speeds up to 9000 revolutions per minute.
Hold-down device: Provides safe and precise guidance of the workpiece during milling.

Pros and cons

Robust and vibration-free cast iron construction
Easy speed change via belt shift
LED speed display on the front
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood
Accessories such as sliding table must be purchased separately
The machine’s weight of 174 kg requires a fixed placement in the workshop

Pros and cons

Pros

Robust and vibration-free cast iron construction
Easy speed change via belt shift
LED speed display on the front
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood

Cons

Accessories such as sliding table must be purchased separately
The machine’s weight of 174 kg requires a fixed placement in the workshop

Pros

Robust and vibration-free cast iron construction
Easy speed change via belt shift
LED speed display on the front
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood

Cons

Accessories such as sliding table must be purchased separately
The machine’s weight of 174 kg requires a fixed placement in the workshop

Pros: The machine has a robust and vibration-free cast iron construction, makes it easy to change speed via belt shift, has LED speed display on the front, offers the option for accessories such as sliding table and chassis device, and is suitable for precision work in wood.

Cons: Accessories such as sliding table must be purchased separately, and the machine’s weight of 174 kg requires a fixed placement in the workshop.

Pros: The machine has a robust and vibration-free cast iron construction, makes it easy to change speed via belt shift, has LED speed display on the front, offers the option for accessories such as sliding table and chassis device, and is suitable for precision work in wood.

Cons: Accessories such as sliding table must be purchased separately, and the machine’s weight of 174 kg requires a fixed placement in the workshop.

Specifications

Model: TF 190SE
Manufacturer: Holzstar
Supply voltage: 230 V
Mains frequency: 50 Hz
Drive motor power: 2.2 kW
Absorbed power: 2.8 kW
Milling speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
Speed control: Belt shift
Speed display: LED on the machine front
Milling unit angle range: -5° to +30°
Milling spindle length: 100 mm
Max. tool diameter retractable: 200 mm
Arbor diameter: 30 mm
Extraction port diameter: 100 mm
Worktable (L×W): 710 × 640 mm
Table height: 900 mm
Sliding carriage length: 1200 mm
Sliding carriage width: 700 mm
Sliding carriage height: 500 mm
Machine dimensions (L×W×H): 750 × 660 × 1200 mm
Weight: approx. 174 kg
Article number (SKU): SM-5901933

See details

5

Precision in woodworking

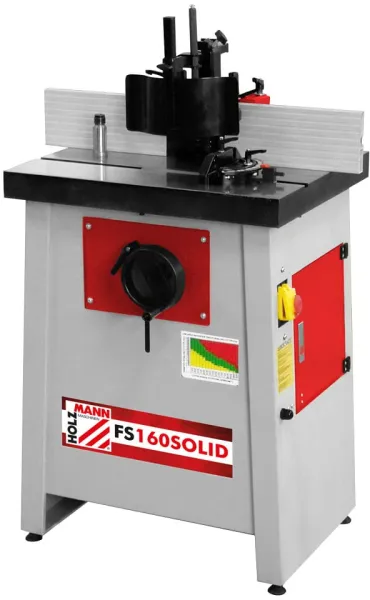

Holzmann Table Router FS160 Solid 230V

A robust table router from Holzmann with a cast iron table, powerful motor and adjustable spindle speed that provides precise routing for many types of woodworking tasks.

Why it was chosen: The FS160 Solid 230V was selected as an example of a compact yet powerful table router that combines solid construction with flexible adjustment options. It represents a typical choice for both smaller workshops and professional users who value stability and precision.

The Holzmann FS160 Solid 230V is a stationary table router constructed from cast iron, providing high stability during operation. The fixed and stable frame ensures that the machine stands firmly, even during demanding routing tasks.

The machine is equipped with a 2200 W motor powered by 230 V electricity, delivering sufficient power for both fine and heavy routing work. The dynamically balanced spindle contributes to precise cuts and reduces vibrations during use.

The table measures 620 x 510 mm and has a working height of 860 mm, providing an ergonomic working position. The router spindle has a diameter of 30 mm and can operate at four different speeds – 1400, 4000, 6000 and 9000 revolutions per minute – allowing the user to adjust the speed according to the material and task.

The machine has a 100 mm extraction port, making it possible to connect dust extraction for a cleaner working environment. The maximum clamping height is 105 mm and the table opening is 160 mm, providing space for various tool sizes. The total weight of 126 kg underlines the machine’s solid construction.

Powerful motor: 2200 W motor provides high performance for demanding routing tasks.
Stable construction: Cast iron table and solid frame ensure vibration-free operation.
Variable speed: Four spindle speeds (1400–9000 rpm) adapted for different materials.
Ergonomic working height: Table height of 860 mm provides a good working position.
Efficient extraction: 100 mm extraction port for connection to dust extraction.

Pros and cons

Solid and vibration-free cast iron construction
Powerful motor with multiple speed settings
Precise spindle with dynamic balance
Option for dust extraction connection
Suitable for both small and medium-sized workshops
Relatively high weight of 126 kg makes it less mobile
Requires a fixed workspace and proper extraction for optimal use

Pros and cons

Pros

Solid and vibration-free cast iron construction
Powerful motor with multiple speed settings
Precise spindle with dynamic balance
Option for dust extraction connection
Suitable for both small and medium-sized workshops

Cons

Relatively high weight of 126 kg makes it less mobile
Requires a fixed workspace and proper extraction for optimal use

Pros

Solid and vibration-free cast iron construction
Powerful motor with multiple speed settings
Precise spindle with dynamic balance
Option for dust extraction connection
Suitable for both small and medium-sized workshops

Cons

Relatively high weight of 126 kg makes it less mobile
Requires a fixed workspace and proper extraction for optimal use

Pros: The machine has a solid and vibration-free cast iron construction, a powerful motor with multiple speed settings, a precise spindle with dynamic balance, and the option for dust extraction connection, making it suitable for both small and medium-sized workshops.

Cons: The relatively high weight of 126 kg makes the machine less mobile, and it requires a fixed workspace and proper extraction to function optimally.

Pros: The machine has a solid and vibration-free cast iron construction, a powerful motor with multiple speed settings, a precise spindle with dynamic balance, and the option for dust extraction connection, making it suitable for both small and medium-sized workshops.

Cons: The relatively high weight of 126 kg makes the machine less mobile, and it requires a fixed workspace and proper extraction to function optimally.

Specifications

Motor power: 2200 W
Voltage: 230 V
Table size: 620 × 510 mm
Table height: 860 mm
Extraction port: 100 mm
Router spindle diameter: 30 mm
Router spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
Maximum clamping height: 105 mm
Table opening: 160 mm
Maximum tool diameter under table: 150 mm
Sound level: 103 dB(A)
Sound pressure: 89.5 dB(A)
Weight: 126 kg
Article number (SKU): FS160SOLID-230V

See details

6

Precision and strength

Holzmann Table Router - FS200 - 230V

A robust table router from Holzmann with a cast iron table, four speeds and LED speed display, suitable for precision woodworking.

Why it was chosen: The Holzmann FS200 was selected for its combination of solid construction, adjustable speeds and precision fence. It represents a professional woodworking tool where stability and accuracy are crucial.

The Holzmann FS200 is a table router designed for precision woodworking. The machine is equipped with a stable cast iron table that provides stability during operation and an aluminium fence with fine adjustment that ensures accurate results.

The router has four standard speeds and an electronic LED display showing the current spindle speed. This makes it easier to adjust the speed for different materials and routing tasks.

The spindle can be adjusted with a handwheel, and the machine comes with a sanding drum, cutter head and aluminium fence. A sliding table can be purchased as an optional accessory and retrofitted if needed.

The FS200 is designed for users who want a combination of power, precision and flexibility in a compact table router for the workshop.

Cast iron table: Provides high stability and reduces vibrations during operation.
LED speed display: Shows the exact spindle speed.
Four speeds: Allows adaptation to different routing tasks.
Fine-adjustable aluminium fence: Ensures precise cuts and consistent results.
Included equipment: Supplied with sanding drum, cutter head and aluminium fence.

Pros and cons

Solid cast iron construction for stable operation
Electronic LED display for easy speed control
Multiple speed settings for different materials
Option to retrofit a sliding table
Supplied with necessary basic equipment
Relatively heavy machine requiring a fixed workspace
Sliding table not included as standard and must be purchased separately

Pros and cons

Pros

Solid cast iron construction for stable operation
Electronic LED display for easy speed control
Multiple speed settings for different materials
Option to retrofit a sliding table
Supplied with necessary basic equipment

Cons

Relatively heavy machine requiring a fixed workspace
Sliding table not included as standard and must be purchased separately

Pros

Solid cast iron construction for stable operation
Electronic LED display for easy speed control
Multiple speed settings for different materials
Option to retrofit a sliding table
Supplied with necessary basic equipment

Cons

Relatively heavy machine requiring a fixed workspace
Sliding table not included as standard and must be purchased separately

Pros: The machine has a solid cast iron construction ensuring stable operation, an electronic LED display for easy speed control, multiple speed settings for different materials, the option to retrofit a sliding table, and comes with the necessary basic equipment.

Cons: It is relatively heavy and therefore requires a fixed workspace, and the sliding table is not included as standard but must be purchased separately.

Pros: The machine has a solid cast iron construction ensuring stable operation, an electronic LED display for easy speed control, multiple speed settings for different materials, the option to retrofit a sliding table, and comes with the necessary basic equipment.

Cons: It is relatively heavy and therefore requires a fixed workspace, and the sliding table is not included as standard but must be purchased separately.

Specifications

Motor power S1 / S6: 2800 W / 3750 W
Voltage: 230 V
Table size: 690 x 480 mm
Table height: 900 mm
Extraction port: 100 mm
Max. tool diameter above table: 190 mm
Max. tool diameter below table: 190 mm
Max. clamping height: 105 mm
Spindle: 100 mm
Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Spindle diameter: 30 mm
Table opening: 200 mm
Fence: 360 x 120 mm
Weight: 155 kg
Model: FS200-230V
Manufacturer: Holzmann

See details

7

Precision in wood

Holzstar Table Router 230V TF 190SE

A powerful table router from Holzstar with a solid cast iron table, adjustable milling unit and LED speed display. The machine is suitable for precision milling and flexible processing of wooden workpieces.

Why it was chosen: The Holzstar TF 190SE was selected for its combination of robust construction, adjustable milling unit and user-friendly speed control. It represents a professional solution for woodworking where stability and precision are crucial.

The Holzstar TF 190SE is a table router constructed in grey cast iron, providing a stable and vibration-free working surface. The large milling unit can be tilted from +5° to -30°, making it possible to perform angled and complex milling tasks with high accuracy.

The machine is equipped with a powerful 2.2 kW motor, and the speed can easily be changed via a multi-V-belt system. The current speed is clearly displayed with LED lights on the front of the machine, giving the user a good overview during operation.

The milling stops are made of aluminium and can be finely adjusted for precise control of the workpiece. A hold-down device ensures stable feeding, and sliding table and chassis devices can be purchased as optional accessories for additional flexibility.

With a working surface of 710 × 640 mm and a weight of 174 kg, the TF 190SE is designed to stand firmly during operation. It combines power, precision and user-friendliness in a machine suitable for both professional and advanced hobby users.

Solid construction: Table and milling unit in grey cast iron for high stability.
Adjustable milling unit: Can be tilted from +5° to -30° for flexible processing.
Easy speed change: Multi-V-belt system with LED speed display.
Precision control: Finely adjustable aluminium stops and hold-down device.
Large working surface: 710 × 640 mm table provides plenty of space for larger workpieces.

Pros and cons

Robust and vibration-free cast iron construction
Easy adjustment of speed and milling angle
LED speed display for better control
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood
The machine’s weight of 174 kg makes it less mobile
Accessories such as sliding table must be purchased separately

Pros and cons

Pros

Robust and vibration-free cast iron construction
Easy adjustment of speed and milling angle
LED speed display for better control
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood

Cons

The machine’s weight of 174 kg makes it less mobile
Accessories such as sliding table must be purchased separately

Pros

Robust and vibration-free cast iron construction
Easy adjustment of speed and milling angle
LED speed display for better control
Option for accessories such as sliding table and chassis device
Suitable for precision work in wood

Cons

The machine’s weight of 174 kg makes it less mobile
Accessories such as sliding table must be purchased separately

Pros: The machine has a robust and vibration-free cast iron construction, is easy to adjust in both speed and milling angle, has an LED speed display for better control, offers the option of accessories such as sliding table and chassis device, and is suitable for precision work in wood.

Cons: The machine’s weight of 174 kg makes it less mobile, and accessories such as sliding table must be purchased separately.

Pros: The machine has a robust and vibration-free cast iron construction, is easy to adjust in both speed and milling angle, has an LED speed display for better control, offers the option of accessories such as sliding table and chassis device, and is suitable for precision work in wood.

Cons: The machine’s weight of 174 kg makes it less mobile, and accessories such as sliding table must be purchased separately.

Specifications

Model: TF 190SE
Manufacturer: Holzstar
Supply voltage: 230 V
Mains frequency: 50 Hz
Drive motor power: 2.2 kW
Absorbed power: 2.8 kW
Milling unit angle: -5° to +30°
Milling spindle length: 100 mm
Milling spindle stroke: 100 mm
Max. tool diameter lowerable: 200 mm
Arbor diameter: 30 mm
Speeds: 1800 / 3000 / 6000 / 9000 min⁻¹
Speed control: Belt
Speed display: LED on the front of the machine
Extraction opening: 100 mm
Worktable: 710 × 640 mm
Table height: 900 mm
Sliding carriage length: 1200 mm
Sliding carriage width: 700 mm
Sliding carriage height: 500 mm
Machine dimensions (L×W×H): 750 × 660 × 1200 mm
Weight: 174 kg
VPE: 1 pc

See details

8

Precision in woodworking

Holzstar Table Router TF 190E / 400V

A stationary table router from Holzstar, model TF 190E, powered by 400V and suitable for precision routing in wood and similar materials.

Why it was chosen: Holzstar TF 190E / 400V was selected as a representative of professional table routers with three-phase power supply, combining stability, power, and accuracy in woodworking.

Holzstar TF 190E / 400V is a powerful table router designed for stationary use in workshops where precision and operational reliability are required. It is typically used for routing profiles, grooves, and edges in wooden workpieces.

The machine is powered by a 400V motor, providing stable and efficient power transmission suitable for long-term work and processing of harder wood types. The construction is robust and ensures minimal vibration during use.

The table router is part of Holzstar's machine range, known for robust workshop equipment for both professional and serious hobby users. The TF 190E model is developed with a focus on precision and user-friendliness in daily operation.

400V motor: Provides high and stable performance for demanding routing tasks.
Stationary construction: Ensures precision and stability during work.
Suitable for woodworking: Designed for routing profiles, grooves, and edges.
Robust construction: Reduces vibrations and increases accuracy.

Pros and cons

Powerful three-phase motor for professional use
Stable and vibration-damped construction
Suitable for precision work in wood
Requires 400V power supply, which limits use in standard household installations
Relatively heavy and stationary – not intended for mobile use

Pros and cons

Pros

Powerful three-phase motor for professional use
Stable and vibration-damped construction
Suitable for precision work in wood

Cons

Requires 400V power supply, which limits use in standard household installations
Relatively heavy and stationary – not intended for mobile use

Pros

Powerful three-phase motor for professional use
Stable and vibration-damped construction
Suitable for precision work in wood

Cons

Requires 400V power supply, which limits use in standard household installations
Relatively heavy and stationary – not intended for mobile use

Pros: The machine has a powerful three-phase motor suitable for professional use, and its stable, vibration-damped construction makes it ideal for precision work in wood.

Cons: It requires a 400V power supply, which limits its use in standard household installations, and it is also relatively heavy and stationary, so it is not intended for mobile use.

Pros: The machine has a powerful three-phase motor suitable for professional use, and its stable, vibration-damped construction makes it ideal for precision work in wood.

Cons: It requires a 400V power supply, which limits its use in standard household installations, and it is also relatively heavy and stationary, so it is not intended for mobile use.

Specifications

Manufacturer: Holzstar
Model: TF 190E
Power supply: 400V
Product type: Table router
SKU: SM-5901923

See details

9

Precision in wood

Holzmann Table Router - FS200S - 400V

A powerful table router from Holzmann with a tiltable spindle, cast iron table and adjustable fence that provides precise routing and flexibility in the workshop.

Why it was chosen: The FS200S from Holzmann was selected for its combination of robust construction, adjustable spindle and versatile speeds. It represents a stable choice for users who want a stationary router for precision work in wood.

The Holzmann FS200S is a stationary table router designed for precision work in wood. The machine is powered by a 400 V motor with an output of 2800 W (S1) and 3750 W (S6), providing sufficient power for both fine and rough routing.

The spindle can be tilted from -5° to 30°, allowing for angled routing and more complex profiles. The table is made of solid grey cast iron, ensuring stability and reducing vibrations during operation.

The fence is made of aluminium and equipped with a hold-down system and fine adjustment, so the workpiece can be guided safely and precisely. The machine has four standard speeds (1800, 3000, 6000 and 9000 revolutions per minute), which can be read electronically on an LED display.

The FS200S comes with a sanding drum, cutter head, aluminium fence and roller hold-down. A roller table can be purchased as an optional accessory and retrofitted if required.

Tiltable spindle: Can be adjusted from -5° to 30° for flexible routing.
Cast iron table: Provides stability and reduces vibrations.
Precise fence: With hold-down system and fine adjustment for accurate work.
Four speeds: 1800, 3000, 6000 and 9000 rpm for different routing tasks.
LED display: Electronically shows the current speed.

Pros and cons

Powerful motor with 400 V operation
Stable cast iron construction
Adjustable spindle angle for flexibility
Precise fence with fine adjustment
Multiple speed settings with electronic readout
The machine’s weight of approximately 191 kg requires a fixed placement
Roller table is an optional accessory and not included as standard

Pros and cons

Pros

Powerful motor with 400 V operation
Stable cast iron construction
Adjustable spindle angle for flexibility
Precise fence with fine adjustment
Multiple speed settings with electronic readout

Cons

The machine’s weight of approximately 191 kg requires a fixed placement
Roller table is an optional accessory and not included as standard

Pros

Powerful motor with 400 V operation
Stable cast iron construction
Adjustable spindle angle for flexibility
Precise fence with fine adjustment
Multiple speed settings with electronic readout

Cons

The machine’s weight of approximately 191 kg requires a fixed placement
Roller table is an optional accessory and not included as standard

Pros: The machine has a powerful motor with 400 V operation, a stable cast iron construction, adjustable spindle angle for increased flexibility, a precise fence with fine adjustment, and multiple speed settings with electronic readout.

Cons: The machine’s weight of approximately 191 kg requires a fixed placement, and the roller table is an optional accessory not included as standard.

Pros: The machine has a powerful motor with 400 V operation, a stable cast iron construction, adjustable spindle angle for increased flexibility, a precise fence with fine adjustment, and multiple speed settings with electronic readout.

Cons: The machine’s weight of approximately 191 kg requires a fixed placement, and the roller table is an optional accessory not included as standard.

Specifications

Motor power S1 / S6: 2800 W / 3750 W
Voltage: 400 V
Table size: 710 x 640 mm
Table height: 900 mm
Extraction port: 100 mm
Max. tool diameter above table: 190 mm
Max. tool diameter below table: 190 mm
Max. clamping height: 105 mm
Spindle length: 100 mm
Spindle diameter: 30 mm
Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Table opening: 200 mm
Fence: 360 x 120 mm
Weight: 191 kg
Model: FS200S-400V
Manufacturer: Holzmann

See details

10

Precision in woodwork

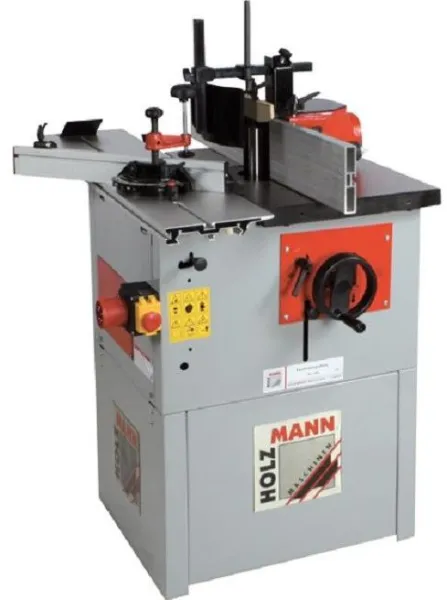

Holzmann Table Router FS160L 400V

A powerful and space-saving table router from Holzmann with a cast iron table, aluminium sliding table and adjustable spindle that delivers precise results for various routing tasks.

Why it was chosen: The Holzmann FS160L 400V was selected for its combination of solid construction, flexible spindle and versatile adjustment options. It represents a professional tool for users seeking precision and stability in woodworking.

The Holzmann FS160L 400V is a table router designed for versatile routing tasks in wood. The machine is equipped with a solid cast iron table that ensures stability during work, as well as an aluminium sliding table measuring 1000 x 215 mm that provides good support for the workpieces.

The router can be tilted up to 60 degrees to both sides and has both mitre and stop blocks, making it suitable for precision work at various angles. Its compact design also makes it easy to place in smaller workshops without compromising functionality.

The machine comes with an interchangeable spindle that can be used for end milling, as well as hold-downs for both mitre and cross milling. The dynamically balanced router spindle contributes to smooth and precise results.

Safety is prioritised with CE-approved protection, height-adjustable safety guard and emergency stop. The combination of a powerful motor and precise adjustment options makes the FS160L 400V suitable for both professional and experienced hobby users.

Stable construction: Cast iron table and aluminium sliding table provide vibration-free operation.
Flexible spindle: Interchangeable spindle for both standard and end milling.
Adjustable angle: The table can be tilted up to 60° to both sides for precision work.
Safe operation: CE-approved protection with emergency stop and height-adjustable safety guard.
Compact design: Space-saving construction that fits in most workshops.

Pros and cons

Solid and vibration-free cast iron construction
Possibility of precise angle adjustments up to 60°
Interchangeable spindle provides flexibility in use
Safety equipment with emergency stop and adjustable guard
Suitable for both professional and experienced hobby users
Relatively high weight of 108 kg can make moving difficult
Requires 400V power supply, which is not available in all workshops

Pros and cons

Pros

Solid and vibration-free cast iron construction
Possibility of precise angle adjustments up to 60°
Interchangeable spindle provides flexibility in use
Safety equipment with emergency stop and adjustable guard
Suitable for both professional and experienced hobby users

Cons

Relatively high weight of 108 kg can make moving difficult
Requires 400V power supply, which is not available in all workshops

Pros

Solid and vibration-free cast iron construction
Possibility of precise angle adjustments up to 60°
Interchangeable spindle provides flexibility in use
Safety equipment with emergency stop and adjustable guard
Suitable for both professional and experienced hobby users

Cons

Relatively high weight of 108 kg can make moving difficult
Requires 400V power supply, which is not available in all workshops

Pros: The machine has a solid and vibration-free cast iron construction, allows precise angle adjustments up to 60°, has an interchangeable spindle for flexible use, is equipped with safety equipment such as emergency stop and adjustable guard, and is suitable for both professional and experienced hobby users.

Cons: The relatively high weight of 108 kg makes it difficult to move, and it requires a 400V power supply that is not available in all workshops.

Pros: The machine has a solid and vibration-free cast iron construction, allows precise angle adjustments up to 60°, has an interchangeable spindle for flexible use, is equipped with safety equipment such as emergency stop and adjustable guard, and is suitable for both professional and experienced hobby users.

Cons: The relatively high weight of 108 kg makes it difficult to move, and it requires a 400V power supply that is not available in all workshops.

Specifications

Model: FS160L 400V
Manufacturer: Holzmann
Sliding table: 1000 x 220 mm
Extraction port: 100 mm
Table height: 850 mm
Table dimensions: 600 x 400 mm
Max. clamping height: 105 mm
Max. tool diameter: 150 mm
Max. tool diameter above table: 170 mm
Spindle length: 110 mm
Spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
Spindle diameter: 30 mm
Table opening: 170 mm
Fence: 350 x 125 mm
Motor power (S1/S6): 1500 W / 2100 W
Voltage: 400 V
Net weight: 108 kg
Package dimensions (L x W x H): 650 x 630 x 530 mm
Scope of delivery: Interchangeable milling rod (ø 12 mm), mitre fence and clamp, milling guard

See details

11

Precision in wood

Holzstar Table Router TF 190E / 230V

A stationary table router from Holzstar, developed for precise routing work in wood and suitable for both workshops and professional users.

Why it was chosen: Holzstar TF 190E / 230V was chosen as a representative of compact yet powerful mid-range table routers. It combines solid construction with electric operation at 230V, making it suitable for many types of woodworking.

The Holzstar TF 190E / 230V is a table router designed for precision work in wood. It is built as a stationary machine that provides stability and control when routing edges, profiles, and joints.

The machine is powered by a 230V motor, making it compatible with standard electrical installations. The fixed table construction provides a stable working surface, and the router unit can be adjusted to achieve precise results for different types of routing tasks.

The TF 190E model is part of Holzstar’s range of woodworking machines, known for their robustness and user-friendliness. It is suitable for both smaller workshops and professional environments where precision and operational reliability are important.

230V operation: Can be connected to standard electrical installations without the need for an industrial socket.
Stable construction: Stationary machine with fixed table for precise work.
Adjustable router unit: Allows precise adjustment for different routing tasks.
Suitable for woodworking: Designed for routing edges, profiles, and joints.

Pros and cons

Solid and stable construction
Can be used with standard 230V power
Suitable for precision work in wood
Fits both workshops and professional users
Requires a fixed workspace and plenty of room in the workshop
No information about included accessories or specific technical data on the product page

Pros and cons

Pros

Solid and stable construction
Can be used with standard 230V power
Suitable for precision work in wood
Fits both workshops and professional users

Cons

Requires a fixed workspace and plenty of room in the workshop
No information about included accessories or specific technical data on the product page

Pros

Solid and stable construction
Can be used with standard 230V power
Suitable for precision work in wood
Fits both workshops and professional users

Cons

Requires a fixed workspace and plenty of room in the workshop
No information about included accessories or specific technical data on the product page

Pros: The product has a solid and stable construction, can be used with standard 230V power, is suitable for precision work in wood, and fits both workshops and professional users.

Cons: It requires a fixed workspace with plenty of room in the workshop, and there is a lack of information about included accessories and specific technical data on the product page.

Pros: The product has a solid and stable construction, can be used with standard 230V power, is suitable for precision work in wood, and fits both workshops and professional users.

Cons: It requires a fixed workspace with plenty of room in the workshop, and there is a lack of information about included accessories and specific technical data on the product page.

Specifications

Manufacturer: Holzstar
Model: TF 190E / 230V
Product type: Table router
Power supply: 230V
SKU: SM-5901921

See details

12

Professional woodworking router

Holzmann Table Router - FS200S 230V

A robust table router from Holzmann with a cast iron table, adjustable spindle and four milling speeds that provide precise machining of wooden workpieces.

Why it was chosen: The FS200S 230V was selected for its combination of solid construction, flexible spindle adjustment and user-friendly features. It represents a typical choice for both professionals and serious hobbyists who want a stable router for woodworking.

The Holzmann FS200S 230V is a table router designed with a solid cast iron table that ensures stability and reduces vibrations during operation. The machine is equipped with a high-quality fence that includes a hold-down system and fine adjustment capability, providing precise control of the workpiece.

The spindle can be tilted from -5° to +30°, allowing for angled milling and adjustment of the work process as needed. The router offers four standard speeds so the user can choose the optimal speed for different materials and tool diameters.

A large handwheel makes it easy to adjust the spindle height, and the speed can be read directly on an LED display for better control. The machine can be equipped with a roller table as an optional accessory, expanding its usability for larger workpieces.

The FS200S comes with an aluminium fence and milling guard, and its technical specifications show a powerful motor delivering up to 3750 W in S6 operation. The combination of power, precision and solid design makes it suitable for both workshops and small-scale production.

Cast iron table: Provides stability and reduces vibrations during milling.
Adjustable spindle range: Tiltable from -5° to +30° for flexible tasks.
Four milling speeds: Allows adaptation to different materials and tools.
LED display: Clearly shows the speed for precise control.
Powerful motor: Up to 3750 W in S6 operation ensures high performance.

Pros and cons

Solid cast iron construction
Precise fence with fine adjustment
Multiple speed settings
Option for spindle angle adjustment
LED display for easy reading
Roller table not included as standard
Machine weight of 170 kg requires fixed placement

Pros and cons

Pros

Solid cast iron construction
Precise fence with fine adjustment
Multiple speed settings
Option for spindle angle adjustment
LED display for easy reading

Cons

Roller table not included as standard
Machine weight of 170 kg requires fixed placement

Pros

Solid cast iron construction
Precise fence with fine adjustment
Multiple speed settings
Option for spindle angle adjustment
LED display for easy reading

Cons

Roller table not included as standard
Machine weight of 170 kg requires fixed placement

Pros: The machine has a solid cast iron construction, a precise fence with fine adjustment, multiple speed settings, the option for spindle angle adjustment, and an LED display that makes reading easy.

Cons: The roller table is not included as standard, and the machine’s weight of 170 kg requires a fixed placement.

Pros: The machine has a solid cast iron construction, a precise fence with fine adjustment, multiple speed settings, the option for spindle angle adjustment, and an LED display that makes reading easy.

Cons: The roller table is not included as standard, and the machine’s weight of 170 kg requires a fixed placement.

Specifications

Model: FS200S 230V
Motor power S1/S6: 2800 / 3750 W
Voltage: 230 V
Extraction port: 100 mm
Table height: 900 mm
Table dimensions: 710 x 640 mm
Max. tool diameter above table: 190 mm
Max. tool diameter below table: 190 mm
Spindle tilt: -5° to +45°
Max. clamping height: 105 mm
Spindle length: 100 mm
Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
Spindle diameter: 30 mm
Table opening: 200 mm
Fence: 360 x 120 mm
Net weight: 170 kg
Package dimensions (L x W x H): 760 x 690 x 700 mm
Scope of delivery: Aluminium fence, milling guard

See details
